QuickDMX Wireless Receiver
81.50 CHF *
Available immediately
Description
Merkmale
Technical data
Video
Accessories
Alternative products
Others also bought:
Similar items
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

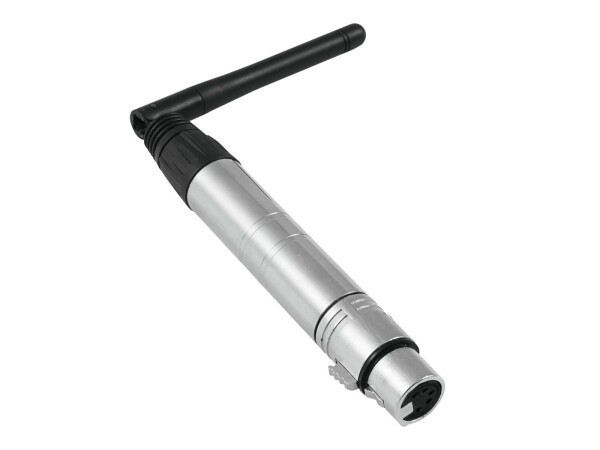

Productinformation in detailCompact wireless DMX receiver 2.4 GHz, phantom powered
- User-friendly 5-pin XLR adapter(female) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- Can receive and process up to 512 DMX channels
- Control via DMX; QuickDMX; plug and play
- Operating range up to 400m
- Up to 6 transmitters can be operated in parallel without interference
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity
| Power supply: | 5 V DC |
| IP classification: | IP20 |
| Power connection: | Mains input via 5-pin XLR (W) connector |
| DMX channels: | Input 512 |
| DMX output: | 1 x 5-pin XLR (F) |
| Control: | DMX; QuickDMX; plug and play |
| Range: | Range up to 400m |
| Carrier frequency: | 2,4 GHz |
| Parallel mode: | Max. 6 transmitter |
| Modulation: | GFSK |
| Color: | Silver |
| Dimensions: | Length: 21,2 cm Diameter: Ø 1,8 cm |
| Weight: | 100 g |
Technical data
| Power supply: | 5 V DC |
| IP classification: | IP20 |
| Power connection: | Mains input via 5-pin XLR (W) connector |
| DMX channels: | Input 512 |
| DMX output: | 1 x 5-pin XLR (F) |
| Control: | DMX; QuickDMX; plug and play |
| Carrier frequency: | 2,4 GHz |
| Modulation: | GFSK |
| Parallel mode: | Max. 6 transmitter |
| Range: | Range up to 400m |
| Color: | Silver |
| Dimensions: | Length: 21,2 cm Diameter: Ø 1,8 cm |
| Weight: | 100 g |
