LED TL-4 QCL RGB+UV Trusslight
RRP 116.00 CHF
97.00 CHF *
deliverable
Description
Merkmale
Technical data
Others also bought:
Similar items
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

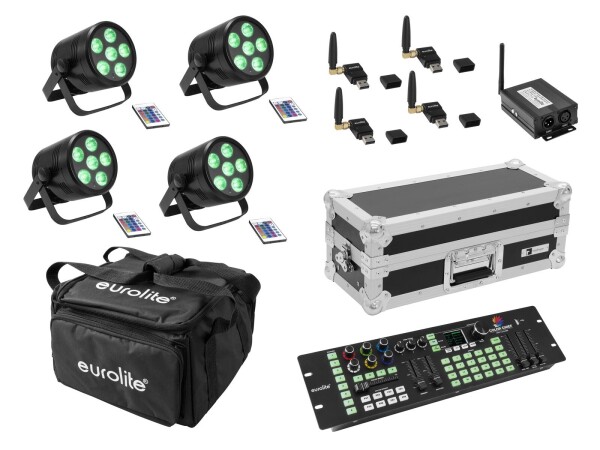

Productinformation in detail4 battery-powered spotlights incl. soft bag, DMX controller incl. flightcase and wireless DMX system
EUROLITE AKKU PAR 6 QCL
Battery-powered LED spotlight with RGBW color mixing, incl. IR remote control
- Battery operation up to 12h depending on program used
- 6 powerful LEDs 4 W high-power 4in1 QCL RGBW (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) adjustable
- Strobe effect
- Direct color selection for 25 preset colors
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control
- Flicker-free
- With a beam angle of 18°
- With double bracket
- 4 digit 7-segment LED display
- For application areas such as: Wedding/gala/events; mobile use; mobile djs / entertainer; Stage
- Mains input and output for power linking up to 8 units
- Cordless, flexible and versatile
- Integrated automatic charging of the battery and status indicator
- Preprogrammed in Light´J; LED PC-Control 512; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
- Silent operation
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x xLR cable, 1 x remote control, 1 x battery
EUROLITE QuickDMX USB Wireless Transmitter/Receiver
Wireless miniature DMX transceiver 2.4 GHz, phantom powered
- User-friendly USB plug with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via DMX; QuickDMX; plug and play
- Operating range up to 400m with line-of-sight
- Up to 6 transmitters can be operated in parallel without interference
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity
EUROLITE QuickDMX Wireless Transmitter/Receiver
Wireless DMX system 2.4 GHz
- Auto-switching transceiver
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via DMX; QuickDMX; plug and play
- Operating range up to 400m
- Up to 6 transmitters can be operated in parallel without interference
Package contents
- 1 x device, 1 x user manual, 1 x external mains adapter, 1 x uSB cable, 1 x antenna, 1 x declaration of conformity
EUROLITE SB-4 Soft Bag L
Black soft bag for up to 4 devices, 320 x 320 x 200 mm
- Practical transport bag offers enough space for several lighting effects and accessories
- With Dividers
- With 2 Outside pockets
- With 4 Device compartments
- High-quality workmanship with nylon , black, water repellent
- Interior with foam padding
cover with foam padding - 2 carrying straps
Package contents
- 1 x bag
EUROLITE DMX LED Color Chief Controller
DMX lighting desk with innovative control concept for LED spotlights
- Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
- For 8 devices or device groups, each with up to 4 segments
- Quick and easy programming
- Additional fixtures can be configured manually
- 8 color effects directly selectable
- 3 additional channels available per fixture (e.g. for rotations)
- Color wheel selection and simulation
- 24 memory spaces for scenes and chases
- Several chases and scenes can be run simultaneously
- USB port for storing program data
- Sound control via audio signal or TAP button
- Master dimming, fade time and run time easily adjustable
- Programmable 24 scenes/chases distributed over 1 page(s )
- Can transmit up to 240 DMX channels
- Control via DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
- (19") 48.3 cm rack installation 3 U
- Desktop console housing
- For application areas such as: Clubs/dancing school; Party room; Trade fair and shop fitting; mobile djs / entertainer; restaurants, bars and hotels
- Silent operation
- Firmware can be updated
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter
ROADINGER Mixer Case Pro MCA-19, 4U, bk
Rack case
- Upward tilted profile rails for top-operated units
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
- Removable cover
- Aluminum profile frames 30mm with rounded edges
- Rugged carrying handle
- 2 high-quality butterfly locks with shut-off function
- Rubber feet
- With profile rails suitable for 19" units
- 4 U
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Weight: | 18,69 kg |
| EUROLITE AKKU PAR 6 QCL | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Battery/battery pack Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Battery pack type: | 1 x lithium ion 14,8 V, 4400 mAh, 65,12 Wh |
| Battery pack: | Battery operation up to 12h depending on program used Recharging time 3,5h |
| Lamp type: | LED lamp |
| LED: | 6 x 4 W high-power 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: | 6; 11 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control |
| Preprogrammed in: | Light´J; LED PC-Control 512; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 18° |
| Beam angle (1/2 peak): | 18° |
| Beam angle (1/10 peak): | 36° |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Display type: | 4 digit 7-segment LED display |
| Dimensions: | Width: 17,7 cm Depth: 14,3 cm Height: 21,1 cm |
| Weight: | 2,52 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| EUROLITE QuickDMX USB Wireless Transmitter/Receiver | |
| Power supply: | 5 V DC |
| IP classification: | IP20 |
| Power connection: | Mains input via USB A (M) connectable version |
| DMX channels: | Input 512 Output 512 |
| DMX output: | 1 x USB, type A |
| Control: | DMX; QuickDMX; plug and play |
| Range: | Range up to 400m with line-of-sight |
| Carrier frequency: | 2,4 GHz |
| Parallel mode: | Max. 6 transmitter |
| Modulation: | GFSK |
| Color: | Black |
| Dimensions: | Width: 8,6 cm Depth: 4 cm Height: 1,1 cm |
| Weight: | 10 g |
| EUROLITE QuickDMX Wireless Transmitter/Receiver | |
| Power supply: | 100-240 V AC, 50/60 Hz 5 V DC 500 mA |
| IP classification: | IP20 |
| Power connection: | Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Input 512 Output 512 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; QuickDMX; plug and play |
| Range: | Range up to 400m |
| Carrier frequency: | 2,4 GHz |
| Parallel mode: | Max. 6 transmitter |
| Modulation: | GFSK |
| Color: | Black |
| Dimensions: | Width: 21,2 cm Depth: 10 cm Height: 7,5 cm |
| Weight: | 290 g |
| EUROLITE SB-4 Soft Bag L | |
| Maximum load: | 25 kg |
| Carrying strap: | 2 pc/pcs |
| Material: | Nylon |
| Color: | Black, water repellent |
| Compartment dimensions: | 15 cm x 15 cm x 20 cm |
| Inside dimensions: | 31 cm x 34 cm x 20 cm |
| Dimensions: | Width: 32 cm Depth: 41 cm Height: 20 cm |
| Weight: | 520 g |
| EUROLITE DMX LED Color Chief Controller | |
| Power supply: | 100-240 V AC, 50/60 Hz 9 V DC 800 mA |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: | Programmable 24 scenes/chases distributed over 1 page(s ) |
| DMX channels: | Output 240 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone |
| Housing color: | Black |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Color: | Black |
| PC connect: | , firmware can be updated |
| Housing design: | (19") 48.3 cm rack installation 3 U Desktop console housing |
| Dimensions: | Width: 48,3 cm Depth: 13,35 cm Height: 8,5 cm |
| Weight: | 2,25 kg |
| Noise classification: | Class 0 (no noise at all) |
| ROADINGER Mixer Case Pro MCA-19, 4U, bk | |
| Maximum load: | 25 kg |
| Removable covers: | 1 pc/pcs |
| Aluminum profile frames: | 30 mm |
| Carrying handle: | 1 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs with shut-off function |
| Transport aid: | Rubber feet |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated; dark brown, laminated |
| Inside dimensions: | 44,6 cm x 23,8 cm x 10,5 cm |
| Front panel width: | 19" |
| Mounting height: | Approx. 18 cm (4 U) |
| Mounting depth: | 105 mm |
| Housing design: | 4 U |
| Dimensions: | Width: 54 cm Depth: 27 cm Height: 23,5 cm |
| Weight: | 5,50 kg |
Merkmale
| Item information | Value |
|---|---|
| power supply: | battery pack |
| Item weight: | 20,50 kg |
Technical data
| Weight: | 18,69 kg |
| EUROLITE AKKU PAR 6 QCL | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Battery/battery pack Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Battery pack type: | 1 x lithium ion 14,8 V, 4400 mAh, 65,12 Wh |
| Battery pack: | Battery operation up to 12h depending on program used Recharging time 3,5h |
| Lamp type: | LED lamp |
| LED: | 6 x 4 W high-power 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: | 6; 11 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; stand-alone; Sound to light via Microphone; Master/slave function; Light´J; LED PC-Control 512; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain; IR remote control; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 18° |
| Beam angle (1/2 peak): | 18° |
| Beam angle (1/10 peak): | 36° |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Width: 17,7 cm Depth: 14,3 cm Height: 21,1 cm |
| Weight: | 2,52 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| EUROLITE QuickDMX USB Wireless Transmitter/Receiver | |
| Power supply: | 5 V DC |
| IP classification: | IP20 |
| Power connection: | Mains input via USB A (M) connectable version |
| DMX channels: | Input 512 Output 512 |
| DMX output: | 1 x USB, type A |
| Control: | DMX; QuickDMX; plug and play |
| Carrier frequency: | 2,4 GHz |
| Modulation: | GFSK |
| Parallel mode: | Max. 6 transmitter |
| Range: | Range up to 400m with line-of-sight |
| Color: | Black |
| Dimensions: | Width: 8,6 cm Depth: 4 cm Height: 1,1 cm |
| Weight: | 10 g |
| EUROLITE QuickDMX Wireless Transmitter/Receiver | |
| Power supply: | 100-240 V AC, 50/60 Hz 5 V DC 500 mA |
| IP classification: | IP20 |
| Power connection: | Mains input via micro USB (F) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Input 512 Output 512 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; QuickDMX; plug and play |
| Carrier frequency: | 2,4 GHz |
| Modulation: | GFSK |
| Parallel mode: | Max. 6 transmitter |
| Range: | Range up to 400m |
| Color: | Black |
| Dimensions: | Width: 21,2 cm Depth: 10 cm Height: 7,5 cm |
| Weight: | 290 g |
| EUROLITE SB-4 Soft Bag L | |
| Maximum load: | 25 kg |
| Carrying strap: | 2 pc/pcs |
| Material: | Nylon |
| Color: | Black, water repellent |
| Compartment dimensions: | 15 cm x 15 cm x 20 cm |
| Inside dimensions: | 31 cm x 34 cm x 20 cm |
| Dimensions: | Width: 32 cm Depth: 41 cm Height: 20 cm |
| Weight: | 520 g |
| EUROLITE DMX LED Color Chief Controller | |
| Power supply: | 100-240 V AC, 50/60 Hz 9 V DC 800 mA |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: | Programmable 24 Sequences |
| DMX channels: | Output 240 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone |
| Housing color: | Black |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 3 U Desktop console housing |
| Dimensions: | Width: 48,3 cm Depth: 13,35 cm Height: 8,5 cm |
| Weight: | 2,25 kg |
| ROADINGER Mixer Case Pro MCA-19, 4U, bk | |
| Maximum load: | 25 kg |
| Removable covers: | 1 pc/pcs |
| Aluminum profile frames: | 30 mm |
| Carrying handle: | 1 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs with shut-off function |
| Transport aid: | Rubber feet |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated; dark brown, laminated |
| Inside dimensions: | 44,6 cm x 23,8 cm x 10,5 cm |
| Front panel width: | (19") approx. 48 cm |
| Mounting height: | Approx. 18 cm (4 U) |
| Mounting depth: | 105 mm |
| Housing design: | 4 U |
| Dimensions: | Width: 54 cm Depth: 27 cm Height: 23,5 cm |
| Weight: | 5,50 kg |
Artikel mieten
Reviews
Wir freuen uns auf deine BewertungThere are no reviews yet.
