All variations to this product.Description
Productinformation in detail Scheinwerfer aus dem Showroom, leichte gebrauchtspuren, ca. 4H.

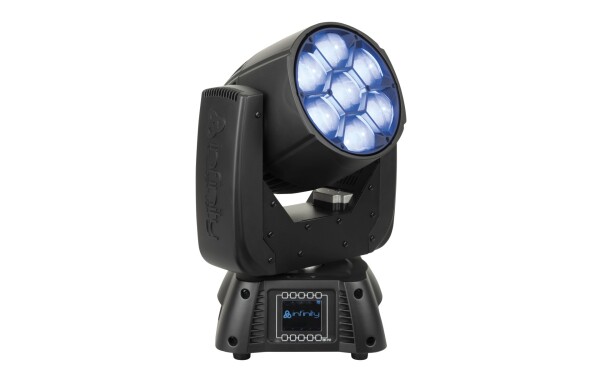

Der Infinity iW-741 ist ein kompaktes Kraftpaket mit 7 RGBW 40W Osram LEDs. Die speziell ausgewählten Motoren garantieren sehr schnelle und präzise Bewegungen. Mithilfe des motorisierten Zooms erzeugen Sie Strahlen von einem messerscharfen 3,6° bis zu einem 60° Wash-Effekt. Die sieben O-Star LEDs erzeugen sehr kräftige und satte Farben und durch den DMX-ansteuerbaren PWM-Wert ist der iW-741 ausserdem perfekt für Theater und Fernsehen geeignet.
Technical data
Output
Lumen: 41888 Lux @ 3m
Beam angle: 3,6° to 60°
Light source: 7x 40W RGBW (Osram)
Electrical
Input voltage: 100-240VAC 50/60Hz (auto ranging)
Power consumption: 295W
Control
On board: Battery powered full colour display including gravity sensor
Mode: DMX, Auto, Master/Slave
Control Protocol: DMX, RDM
Control Personality: 15, 20
Wireless DMX: optional available
Optical system
Dimmer: 0-100%, 16 bit
Dimmer curves: Linear, Square, I-Square, S-Curve
Dimmer speed: Smooth, Fast
Color balance: Separate RGBW adjustment
Color mode: RGBW/CMY
Strobe: 0-20Hz
Zoom: 3,6° – 60°, motorized
Movement
Pan: 540°
Tilt: 230°
Pan/Tilt resolution: 16 bit
Special: Pan/Tilt change black out, User Selectable Pan & Tilt ranges, 540/450/360/180°, Reverse Pan / Tilt movement, Fan control (auto, full,
silent)
Physical
Colour: Black
Housing: Metal & Fire retardant plastic
Fixture connection: XLR 5P, Powercon in/out
Dimensions: 205 x 295 x 395mm
Weight: 9,36kg
Certification and safety
Certification: CE
Max. ambient temp: 45°
Lumen: 41888 Lux @ 3m
Beam angle: 3,6° to 60°
Light source: 7x 40W RGBW (Osram)
Electrical
Input voltage: 100-240VAC 50/60Hz (auto ranging)
Power consumption: 295W
Control
On board: Battery powered full colour display including gravity sensor
Mode: DMX, Auto, Master/Slave
Control Protocol: DMX, RDM
Control Personality: 15, 20
Wireless DMX: optional available
Optical system
Dimmer: 0-100%, 16 bit
Dimmer curves: Linear, Square, I-Square, S-Curve
Dimmer speed: Smooth, Fast
Color balance: Separate RGBW adjustment
Color mode: RGBW/CMY
Strobe: 0-20Hz
Zoom: 3,6° – 60°, motorized
Movement
Pan: 540°
Tilt: 230°
Pan/Tilt resolution: 16 bit
Special: Pan/Tilt change black out, User Selectable Pan & Tilt ranges, 540/450/360/180°, Reverse Pan / Tilt movement, Fan control (auto, full,
silent)
Physical
Colour: Black
Housing: Metal & Fire retardant plastic
Fixture connection: XLR 5P, Powercon in/out
Dimensions: 205 x 295 x 395mm
Weight: 9,36kg
Certification and safety
Certification: CE
Max. ambient temp: 45°
