Alle Variationen zu diesem ArtikelDescription

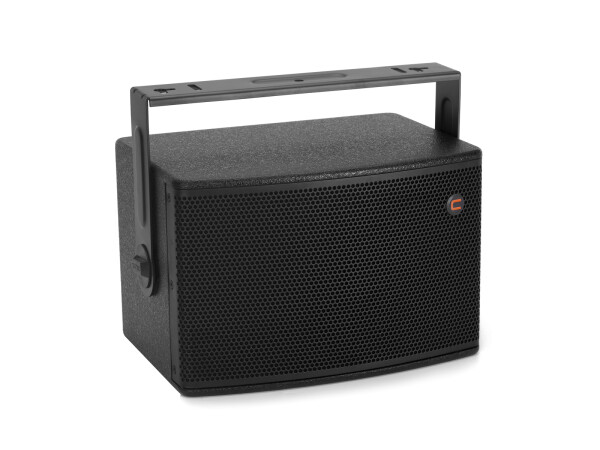

Artikelinfos im DetailBig sound in small package, mounting bracket included
- Real 200 W RMS with high-end sound quality
- Coaxial transducer for unmatched spatial coherence
- Audiophile grade crossover with right phase topology
- Warm and deep full range system
- HF compression driver with ketone polymere dome
- Birch multiplex cabinet with tongue and groove assembly
- With panning and tilting mounting bracket for ceiling or wall installation in most varying angles; with Mounting bracket
- For application areas such as: Theater; sports centres/gyms; Clubs/dancing school; restaurants, bars and hotels
- CELTO ACOUSTIQUE driver
- Available in various colors
Package contents
- 1 x top, 1 x mounting bracket, 1 x nut, 6 x washer, 1 x safety eyelet, 2 x screw, 2 x knurled screw
| Power: | Rated: 200W AES Program: 400W Peak: 800W |
| Frequency range: | 52 - 22000 Hz |
| Sensitivity: | 92 dB (1W/1m) |
| Max. SPL: | 121 dB |
| Dispersion angle: | 80° x 80° |
| Impedance: | 8 ohms |
| Attachment system: | Panning and tilting mounting bracket for ceiling or wall installation in most varying angles Mounting bracket |
| Connections: | Input: speaker via screw plug-in terminal |
| Crossover frequency: | Passive High-pass 2400 Hz, 12db/oct on LF Low-pass 2400 Hz, 18db/oct on HF Recommended High-pass 30 Hz, 24db/oct in full-range mode High-pass 60-140 Hz with iFIX13S or iFIX17S subwoofer |
| Speaker: | 1 x woofer 8" with ferrit magnet Diaphragmmaterial: Ketone-Polymer Voice coil lows 2" 1 x compression tweeter highs 1" Voice coil compression tweeter highs 1" |
| Type of speaker: | Coaxial speaker; on ceiling/on wall speaker |
| Type of construction: | Vented |
| Use of brands: | CELTO ACOUSTIQUE driver |
| Material: | Birch multiplex, 15 mm, CNC made with tongue and grove assembly |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 37 cm Depth: 26,8 cm Height: 24,6 cm |
| Weight: | 10,63 kg |
Caractéristiques techniques
| Power: | Peak: 800W Program: 400W Rated: 200W AES |
| Frequency range: | 52 - 22000 Hz |
| Sensitivity: | 92 dB (1W/1m) |
| Max. SPL: | 121 dB |
| Dispersion angle: | 80° conical |
| Impedance: | 8 ohms |
| Attachment system: | Panning and tilting mounting bracket for ceiling or wall installation in most varying angles Mounting bracket |
| Connections: | Input: speaker via screw plug-in terminal |
| Crossover frequency: | Passive 2400 Hz Recommended High-pass 30 Hz, 24db/oct in full-range mode High-pass 60-140 Hz with iFIX13S or iFIX17S subwoofer |
| Speaker: | 1 x woofer 8" with ferrit magnet Basket material: aluminum Voice coil lows 2" 1 x compression tweeter highs 1" Voice coil compression tweeter highs 1" Diaphragmmaterial: Polymide |
| Type of speaker: | Coaxial speaker; on ceiling/on wall speaker |
| Type of construction: | Vented |
| Use of brands: | CELTO ACOUSTIQUE driver |
| Material: | Birch multiplex, 15 mm, CNC made with tongue and grove assembly |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 37 cm Depth: 26,8 cm Height: 24,6 cm |
| Weight: | 10 kg |
