Description
Caractéristiques techniques
Variations
Alle Variationen zu diesem ArtikelDescription

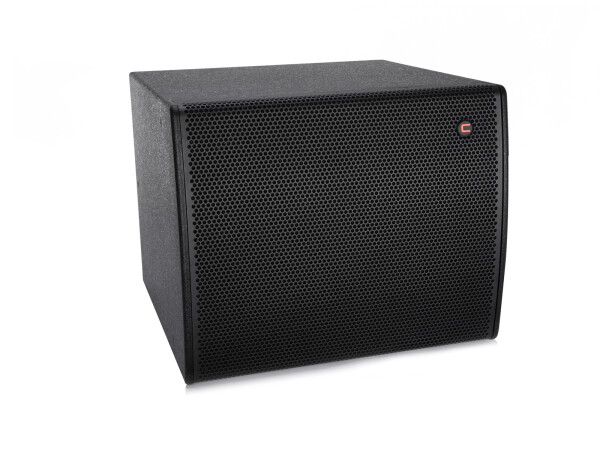

Artikelinfos im DetailCompact 18" subwoofer with 1000 W AES power
- Incredible deep tones from ultra compact cabinet
- High efficiency for incredible SPL to size ratio
- Heavy braced cabinet for vibration free dynamic response
- Birch multiplex cabinet with tongue and groove assembly
- With rigging points
- Available in various colors
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x bass, 1 x screw plug-in terminal
| Power: | Program: 2000W Rated: 1000W AES |
| Frequency range: | 38 - 1200 Hz |
| Sensitivity: | 99 dB |
| Max. SPL: | 135 dB |
| Dispersion angle: | Omnidirectional |
| Impedance: | 8 ohms |
| Housing color: | Any RAL color available on request |
| Flying points: | 8 x M8 thread |
| Connections: | Input: speaker via screw plug-in terminal |
| Crossover frequency: | Active mode only Recommended High-pass 30 Hz, 24db/oct Low-pass 120 Hz, 24db/oct |
| Speaker: | 1 x woofer 18" with ferrit magnet Voice coil lows 3,5" |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Material: | Birch multiplex, 18 mm, CNC made with tongue and grove assembly |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 59,6 cm Depth: 60,0 cm Height: 48,2 cm |
| Weight: | 29,50 kg |
Caractéristiques techniques
| Power: | Peak: 4000W Program: 2000W Rated: 1000W AES |
| Frequency range: | 38 - 1200 Hz |
| Sensitivity: | 99 dB |
| Max. SPL: | 135 dB |
| Dispersion angle: | Omnidirectional |
| Impedance: | 8 ohms |
| Flying points: | 8 x M8 thread |
| Connections: | Input: speaker via screw plug-in terminal |
| Crossover frequency: | Active mode only Recommended High-pass 30 Hz, 24db/oct Low-pass 120 Hz, 24db/oct |
| Speaker: | 1 x woofer 18" with ferrit magnet Basket material: aluminum Voice coil lows 3,5" |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Material: | Birch multiplex, 18 mm, CNC made with tongue and grove assembly |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 59,6 cm Depth: 60,0 cm Height: 48,2 cm |
| Weight: | 32,00 kg |
