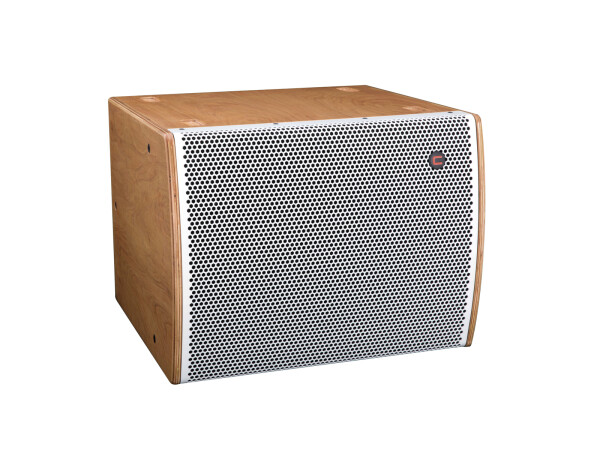

Artikelinfos im DetailCompact 13,5" subwoofer with 800 W AES power
- High efficiency for incredible SPL to size ratio
- With rigging points
- Available in various colors
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Power: | Program: 1600W Rated: 800W AES |
| Frequency range: | 42 - 1500 Hz |
| Sensitivity: | 97 dB (1W/1m) |
| Max. SPL: | 132 dB |
| Dispersion angle: | Omnidirectional |
| Impedance: | 8 ohms |
| Housing color: | Any RAL color available on request |
| Flying points: | 8 x M8 thread |
| Connections: | Input: speaker via screw plug-in terminal |
| Crossover frequency: | Active mode only Recommended High-pass 35 Hz, 24db/oct Low-pass 120 Hz, 24db/oct |
| Speaker: | 1 x woofer 13,5" with ferrit magnet Voice coil lows 3,5" |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Material: | Birch multiplex, 18 mm, CNC made with tongue and grove assembly |
| Color: | Nature, painted |
| Dimensions: | Width: 54,5 cm Depth: 50 cm Height: 41,5 cm |
| Weight: | 25,00 kg |
Caractéristiques techniques
| Power: | Peak: 3200W Rated: 800W AES Program: 1600W |
| Frequency range: | 42 - 1500 Hz |
| Sensitivity: | 97 dB (1W/1m) |
| Max. SPL: | 132 dB |
| Dispersion angle: | Omnidirectional |
| Impedance: | 8 ohms |
| Flying points: | 8 x M8 thread |
| Connections: | Input: speaker via screw plug-in terminal |
| Crossover frequency: | Active mode only Recommended High-pass 35 Hz, 24db/oct Low-pass 120 Hz, 24db/oct |
| Speaker: | 1 x woofer 15" with ferrit magnet Basket material: aluminum Voice coil lows 3,5" |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Material: | Birch multiplex, 18 mm, CNC made with tongue and grove assembly |
| Color: | Nature, painted |
| Dimensions: | Width: 54,5 cm Depth: 50 cm Height: 41,5 cm |
| Weight: | 25,00 kg |
