Alle Variationen zu diesem ArtikelDescription

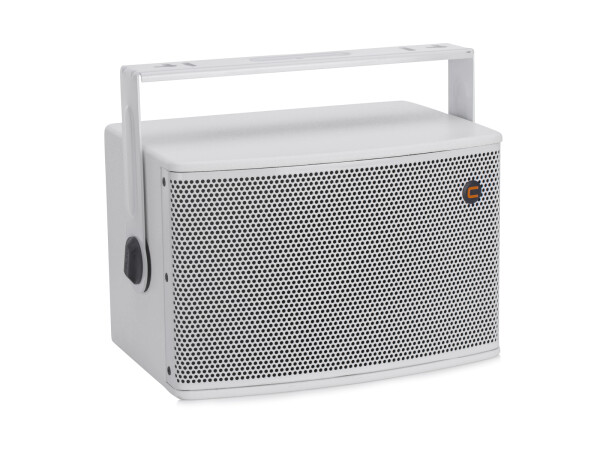

Artikelinfos im DetailBig sound in small package, mounting bracket included
- Real 300 W power handling with high-end sound quality
- Coaxial transducer for unmatched spatial coherence
- High efficiency for incredible SPL to size ratio
- HF compression driver with ketone polymere dome
- With panning and tilting mounting bracket for ceiling or wall installation in most varying angles
- With rigging points
- CELTO ACOUSTIQUE driver
- Available in various colors
- For application areas such as: Theater; sports centres/gyms; Clubs/dancing school; restaurants, bars and hotels
Package contents
- 1 x top, 1 x mounting bracket, 1 x nut, 8 x washer, 1 x safety eyelet, 2 x screw, 1 x screw plug-in terminal
| Power: | Rated: 300W AES Program: 600W Peak: 1200W |
| Frequency range: | 68 - 22000 Hz |
| Sensitivity: | 97 dB (1W/1m) |
| Max. SPL: | 128 dB |
| Dispersion angle: | 80° x 80° |
| Impedance: | 8 ohms |
| Attachment system: | Panning and tilting mounting bracket for ceiling or wall installation in most varying angles |
| Flying points: | 5 x M8 thread |
| Connections: | Input: speaker via screw plug-in terminal |
| Crossover frequency: | Passive 1500 Hz Recommended High-pass 30-130 Hz, 24db/oct with iFIX13S or iFIX17S subwoofer |
| Speaker: | 1 x woofer 10" with ferrit magnet Diaphragmmaterial: PEEK (H.T. polymer) Voice coil lows 2,5" 1 x Annular compression driver 1" Voice coil annular 1,75" |
| Type of speaker: | On ceiling/on wall speaker; Coaxial speaker |
| Type of construction: | Vented |
| Use of brands: | CELTO ACOUSTIQUE driver |
| Material: | Birch multiplex, 15 mm, CNC made with tongue and grove assembly |
| Color: | White, textured coating, painted |
| Dimensions: | Width: 44,00 cm Depth: 29,80 cm Height: 31,60 cm |
| Weight: | 17,05 kg |
Caractéristiques techniques
| Power: | Peak: 1200W Program: 600W Rated: 300W AES |
| Frequency range: | 68 - 22000 Hz |
| Sensitivity: | 97 dB (1W/1m) |
| Max. SPL: | 128 dB |
| Dispersion angle: | 80° conical |
| Impedance: | 8 ohms |
| Attachment system: | Panning and tilting mounting bracket for ceiling or wall installation in most varying angles Mounting bracket |
| Connections: | Input: speaker via screw plug-in terminal |
| Crossover frequency: | Passive 1500 Hz Recommended In subwoofer combination High-pass 30-130 Hz, 24db/oct with iFIX13S or iFIX17S subwoofer |
| Speaker: | 1 x woofer 10" with ferrit magnet Basket material: aluminum Voice coil lows 2,5" 1 x annular compression driver 1" Voice coil annular 1,75" Diaphragmmaterial: PEEK (H.T. polymer) |
| Type of speaker: | On ceiling/on wall speaker; coaxial speaker |
| Type of construction: | Vented |
| Use of brands: | CELTO ACOUSTIQUE driver |
| Material: | Birch multiplex, 15 mm, CNC made with tongue and grove assembly |
| Color: | White, textured coating, painted |
| Dimensions: | Width: 44,00 cm Depth: 29,80 cm Height: 31,60 cm |
| Weight: | 14,5 kg |
