Blind plate for DXT mounting plate
9.25 CHF *
deliverable
Description
Merkmale
Technical data
Video
Accessories
Others also bought:
Similar items
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

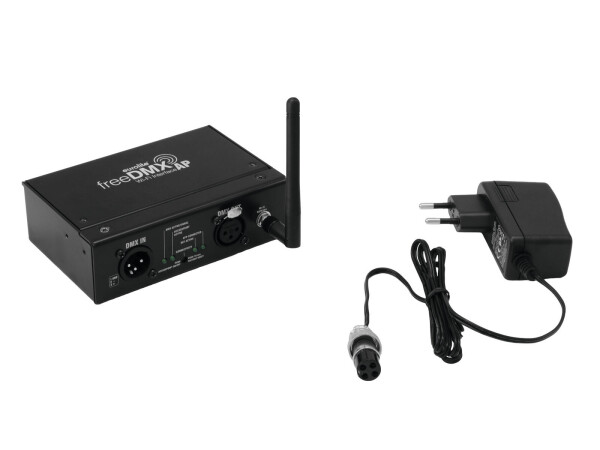

Productinformation in detailWi-Fi DMX interface for apps & programs like Steinigke Light'J
- Wi-Fi DMX interface for wireless lighting control from your tablet or PC
- Receives the control signals via the network and transmits them to the DMX line via cable
- Works with iOS and Android devices
- The apps' online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures - easily add new ones via the fixture profile editor
- Configuration via integrated webserver
- Access point and infrastructure mode
- 1 DMX feed-through output
- Mounting kits for racks, desks and truss systems available as an option
- Can transmit up to 512 DMX channels
- Control via DMX; Light´J app; Wi-Fi; Light Captain App; ArtNet
- 2.4 GHz license-free worldwide
- Operating range up to 60m in the open air
- Operating range up to 30m in buildings
- Built with NEUTRIK connector
- In connection with f.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
- Made in Germany
- For application areas such as: Clubs/dancing school; Wedding/gala/events; Stage; theater; mobile djs / entertainer
- Silent operation
Package contents
- 1 x device, 1 x external mains adapter, 4 x foot, 2 x user manual, 1 x antenna, 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| IP classification: | IP20 |
| Wi-Fi: | Standard: IEEE 802.11 b/g/n |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Light´J app; Wi-Fi; Light Captain App; ArtNet |
| Range: | Range up to 60m in the open air Range up to 30m in buildings |
| Frequency band: | 2.4 GHz |
| Antenna gain: | 2 dBi |
| Status LED: | Signal, pairing, link, chanal source |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| PC connect: | F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) |
| Dimensions: | Width: 13 cm Depth: 11,5 cm Height: 4,1 cm |
| Weight: | 640 g |
| Noise classification: | Class 0 (no noise at all) |
Merkmale
| Item information | Value |
|---|---|
| Typ: | DMX |
| Item weight: | 0,83 kg |
Technical data
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| IP classification: | IP20 |
| WiFi: | Standard: IEEE 802.11 b/g/n |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Light´J app; W-Lan; Light Captain App |
| Frequency band: | 2.4 GHz |
| Antenna gain: | 2 dBi |
| Range: | Range up to 60m in the open air Range up to 30m in buildings |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| PC connect: | F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) |
| Dimensions: | Width: 13 cm Depth: 11,5 cm Height: 4,1 cm |
| Weight: | 650 g |
