SAT WMB 10 B - Wall Mount for Speakers, Black
RRP 33.50 CHF
32.50 CHF *
deliverable
Description
Merkmale
Technical data
Similar items
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

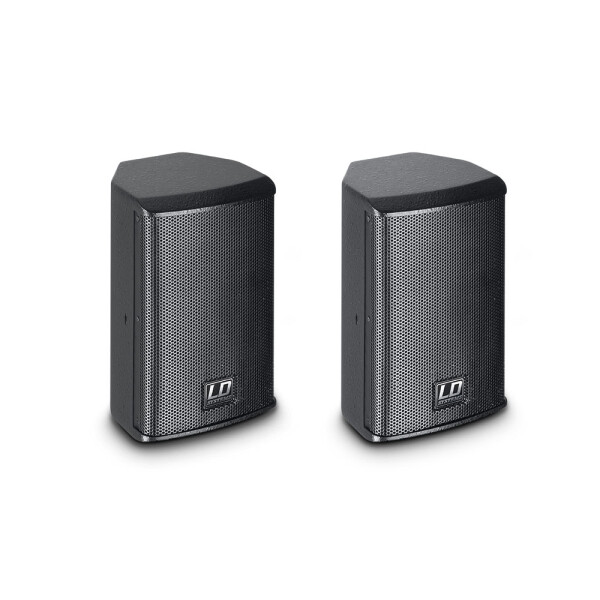

Productinformation in detailThe LD Systems SAT42G2 is an ultracompact 2-way speaker that is suitable for smaller installations and unobtrusive integration in practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.
A balanced sound with a 60° x 60° dispersion angle and a maximum sound-level pressure of 103dB is ensured by the 4" custom woofers and a 1“ silk dome tweeter with wave guide. The impedance of 16 ohms permits parallel operation of eight SAT42G2 speakers on 2 ohms. For a deeper bass foundation with powerful drive, the subwoofers in the LD installation series are the ideal addition.
The cabinet with a rugged textured coatingis made of 12 mm MDF and is available in black and white. M6 inserts and an included mounting bracket provide varied possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.
Merkmale
| Item information | Value |
|---|---|
| Color: | black |
| Item weight: | 7,07 kg |
Technical data
| Product type | Installation Loudspeakers |
| Type | Wall-mounted Loudspeaker |
| Low/mid Woofer dimensions | 4 " |
| Woofer dimensions (mm) | 101 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| HF driver dimensions | 1 " |
| HF driver dimention (mm) | 25 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| Dispersion (H x V) | 60 x 60 ° |
| Load rating (RMS) | 60 W |
| Frequency response | 75 - 20000 |
| SPL (1W/1m) | 85 dB |
| Max. SPL | 103 dB |
| Impedance | 16 Ohm(s) |
| Protection circuits | HF Driver |
| Loudspeaker inputs | 1 |
| Speaker input connections | Clamp connector |
| Speakers per amplifier channel (DSP44/45K) | 8 |
| Cabinet material | 12 mm MDF |
| Cabinet surface | texture paint |
| Cabinet colour | Black |
| Cabinet construction | Closed |
| Width | 140 mm |
| Height | 230 mm |
| Depth | 125 mm |
| Weight | 5 kg |
