All variations to this product.Description

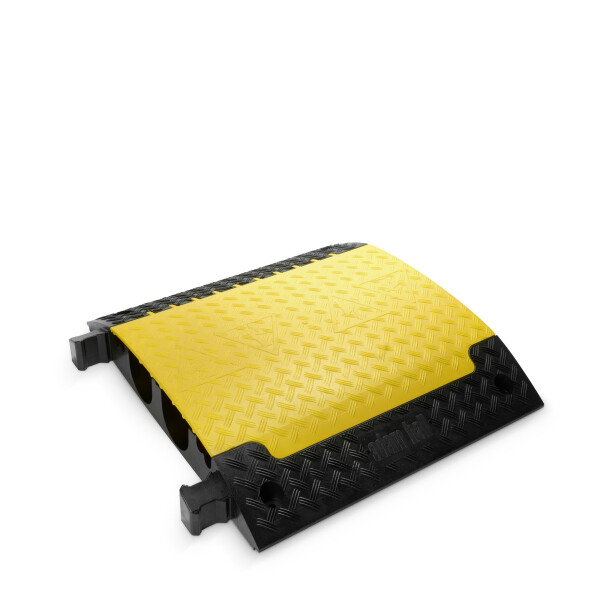

Productinformation in detailDefender® Ultra L 2 heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels of 108 x 110 mm plus four channels with a diameter of 25 mm, as well as integrated connector plugs for easy coupling of several elements. The load bearing capacity is approx. 5 tons on a 25 x 30 cm surface area. This makes Ultra L 2 cable crossovers the ideal solution for heavy traffic, construction sites, warehouses, trade shows, carnivals and music events, as well as other applications involving particularly heavy use. They are equipped with all essential fixation holes for street installation.
Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.
Technical data
| Product type | Cable Protectors |
| Type | 6 Channels |
| Length | 705 mm |
| Width | 765 mm |
| Height | 120 mm |
| Channels | 6 |
| Width channel 1 | 25 mm |
| Height channel 1 | 25 mm |
| Width channel 2 | 25 mm |
| Height channel 2 | 25 mm |
| Width channel 3 | 108 mm |
| Height channel 3 | 110 mm |
| Width channel 4 | 108 mm |
| Height channel 4 | 110 mm |
| Width channel 5 | 25 mm |
| Height channel 5 | 25 mm |
| Width channel 6 | 25 mm |
| Height channel 6 | 25 mm |
| Material | Polyurethane |
| Max load | Approx. 5 t on a surface area of 25 x 30 cm |
| Chemical resistance | Oil-resistant |
| Chemical resistance | Petrol-resistant |
| Hardness range | 88 ± 4 Shore |
| Fire protection class | B2 |
| Temperature range | -30 - 60 °C |
| Weight | 27,4 kg |
| Special feature | 4 fixation holes for street mounting with 10mm Ø |
