HS-1100 XLR Headset Microphone
67.00 CHF *
disponible
Description
Données techniques
Variations
Alle Variationen zu diesem ArtikelDescription

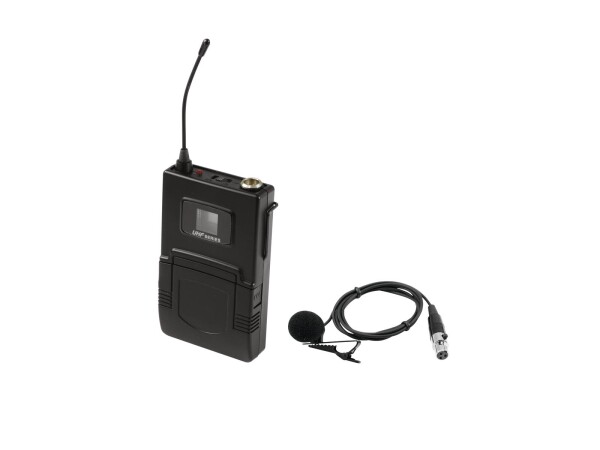

Artikelinfos im DetailPocket transmitter with lavalier microphone for channel A and UHF-502 microphone system
- Pocket transmitter for UHF-502 microphone system with the same carrier frequency
- Incl. lavalier microphone
- Headset microphone optional
- Pilot tone technology (PLL) for interference-free operation
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal
- LCD for battery capacity and transmission channel
- Sensitivity adjustable
- Transmitting power 5 mW/10 mW, switchable
- LED battery indicator
- Belt clip
- Operation via 2 x 1.5 V batteries (type AA), not included
- License-free and approved in the EU
- On/off/mute-switch: Yes
| Carrier frequency: | UHF 863-865 MHz |
| Color code: | CH A = red, CH B = blue |
| Receiving frequencies: | 100 |
| Coverage: | 50 m (with line-of-sight) |
| RF power output: | 5 mW (LO), 10 mW (HI) |
| Modulation method: | FM |
| Frequency stability: | 10 ppm |
| S/N ratio: | >90 dB |
| T.H.D.: | <1 % |
| Audio input: | mini XLR (supplies 5 V) |
| Battery: | 2 x 1.5 V, type AA |
| Power consumption: | approx. 100 mA |
| Dimensions (L x W x H): | 108 x 66 x 22 mm |
| Lavalier microphone: | |
| Type: | Electret |
| Directivity pattern: | Cardioid |
| Sensitivity: | -47 dB |
| Impedance: | 680 ohms |
| S/N ratio: | >63 dB |
| Power supply: | 2-10 V DC |
| Connection: | cable with 3-pin mini XLR plug |
| Cable length: | approx. 1 m |
| Capsule: | 9.7 x 5.2 mm |
| Frequency band: | UHF 863 - 865 MHz |
| Weight: | 0,217 kg |
| Frequency range: | 50 - 15000 Hz |
| Height: | 10,8 cm |
| Depths: | 2,2 cm |
| Width: | 6,6 cm |
Données techniques
| Carrier frequency: | UHF 863-865 MHz |
| Color code: | CH A = red, CH B = blue |
| Receiving frequencies: | 100 |
| Coverage: | 50 m (with line-of-sight) |
| RF power output: | 5 mW (LO), 10 mW (HI) |
| Modulation method: | FM |
| Frequency stability: | 10 ppm |
| S/N ratio: | >90 dB |
| T.H.D.: | <1 % |
| Audio input: | mini XLR (supplies 5 V) |
| Battery: | 2 x 1.5 V, type AA |
| Power consumption: | approx. 100 mA |
| Dimensions (L x W x H): | 108 x 66 x 22 mm |
| Lavalier microphone: | |
| Type: | Electret |
| Directivity pattern: | Cardioid |
| Sensitivity: | -47 dB |
| Impedance: | 680 ohms |
| S/N ratio: | >63 dB |
| Power supply: | 2-10 V DC |
| Connection: | cable with 3-pin mini XLR plug |
| Cable length: | approx. 1 m |
| Capsule: | 9.7 x 5.2 mm |
| Frequency band: | UHF 863 - 865 MHz |
| Weight: | 0,217 kg |
| Frequency range: | 50 - 15000 Hz |
| Height: | 10,8 cm |
| Depths: | 2,2 cm |
| Width: | 6,6 cm |
