M-C36 Condenser Capsule
96.90 CHF *
deliverable
Description
Technical data
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

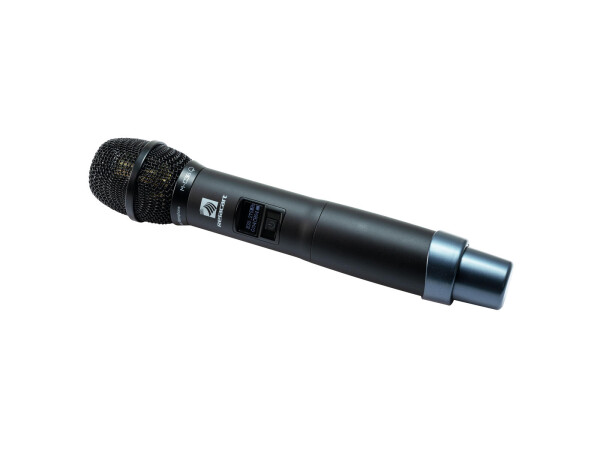

Productinformation in detailHand-held microphone with PLL multifrequency transmitter
- Condenser hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Capsule M-C36
- Directly compatible with Shure's SM58 capsule
- Polar pattern: Cardioid
- Operating range up to 80m
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- OLED display
- Charge status indicator
Package contents
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
| Type: | Hand-held transmitter |
| Power supply: | 3 V DC |
| Capsule type: | Condenser |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 100 - 18000 Hz |
| Sensitivity: | -52 dB |
| Max. SPL: | 145 dB |
| Range: | Range up to 80m |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Switching bandwidth: | 11 MHz |
| RF power output: | 10 mW |
| Modulation: | FM |
| Frequency selection: | 90 Switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Display type: | OLED display |
| Display: | Charge status indicator , frequency , Chanal |
| Control elements: | Gain-switch (high-mid-low), Transmitter power switch (high-low) |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Dimensions: | Length: 25,5 cm Diameter: Ø 5,2 cm |
| Weight: | 340 g |
Technical data
| Type: | Hand-held transmitter |
| Power supply: | 3 V DC |
| Capsule type: | Condenser |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 100 - 18000 Hz |
| Sensitivity: | -52 dB |
| Max. SPL: | 145 dB |
| Display type: | OLED display |
| Display: | Charge level , frequency , Chanal |
| Control elements: | Gain-switch (high-mid-low), Transmitter power switch (high-low) |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 90 Switchable frequencys In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| RF power output: | 10 mW |
| Range: | Range up to 80m |
| Switching bandwidth: | 11 MHz |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Dimensions: | Length: 25,5 cm Diameter: Ø 5,2 cm |
| Weight: | 340 g |
