WAM-402 4CH Digital UHF Automatic Mixer
PVR 685.00 CHF
555.00 CHF *
disponible
Description
Caractéristiques techniques
Variations
Alle Variationen zu diesem ArtikelDescription

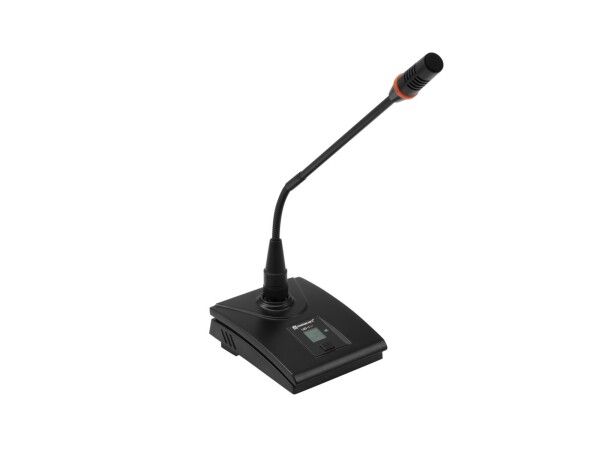

Artikelinfos im DetailUHF gooseneck microphone for model WAM-402, 823-832 + 863-865 MHz
- Gooseneck microphone with UHF pilot tone technology (PLL)
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Gain control and low cut switch
- Operating range up to 60m
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- LCD display
- Charge status indicator
- Up to 8 transmitters can be operated in parallel without interference
Package contents
- 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity
| Type: | Gooseneck microphone |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Condenser |
| Battery: | 2 x Mignon (AA) (not included) |
| Low cut: | 120Hz, switchable |
| Gain: | Input: ± 10 dB |
| Range: | Range up to 60m |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Switching bandwidth: | 11 MHz |
| Frequency stability: | ± 0,0005 % |
| Parallel mode: | Max. 8 transmitter |
| RF power output: | 10 mW |
| Modulation: | FM |
| Frequency selection: | 90 Switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Display type: | LCD display |
| Display: | Charge status indicator , frequency , Chanal |
| Control elements: | Transmitter power switch (high-low) |
| Connections: | Input: Microphone via 3-pin XLR (F) mounting version |
| Switch: | On/off switch; low cut switch |
| Material: | Metal |
| Color: | Black |
| Dimensions: | Width: 11,5 cm Depth: 14 cm Height: 48,5 cm |
| Weight: | 830 g |
Caractéristiques techniques
| Type: | Gooseneck microphone |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Condenser |
| Battery: | 2 x Mignon (AA) (not included) |
| Low cut: | 120Hz, switchable |
| Gain: | Input: ± 10 dB |
| Display type: | LCD display |
| Display: | Charge level , frequency , Chanal |
| Control elements: | Transmitter power switch (high-low) |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency selection: | 90 Switchable frequencys In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| RF power output: | 10 mW |
| Frequency stability: | ± 0,0005 % |
| Range: | Range up to 60m |
| Switching bandwidth: | 11 MHz |
| Switch: | On/off switch; low cut switch |
| Material: | Metal |
| Color: | Black |
| Dimensions: | Width: 11,5 cm Depth: 14 cm Height: 48,5 cm |
| Weight: | 830 g |
