Productinformation in detailThe U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

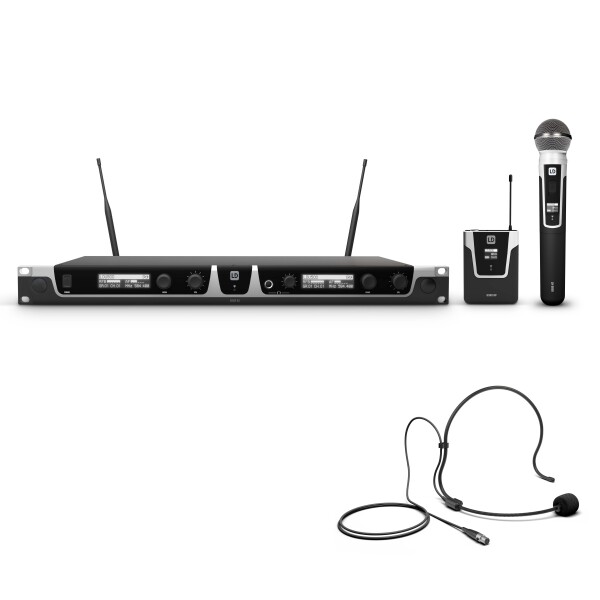

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.
Overview of frequency ranges of vocal sets:
- U505 // 584 - 608 MHz // 12 systems can be used simultaneously
- U506 // 655 - 679 MHz // 12 systems can be used simultaneously
- U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
- U506 UK (Channel 38) // 606 – 614 MHz //
- U518 // 1785 – 1800 MHz //
Technical data
| Product type | Wireless Microphone System Accessories |
| Product type | Wireless Microphone System Accessories |
| Product type | Wireless Microphone System Accessories |
| Product type | Wireless Microphone Systems |
| Product type | Wireless Microphone System Accessories |
| Type | Headsets |
| Type | Microphones |
| Type | Bodypack |
| Transmission frequency range | 584 - 608 MHz |
| Transmission frequency range | 584 - 608 MHz |
| Type | Headsets / Handhelds |
| Type | Receivers |
| Type | true diversity |
| Modulation Type | FM |
| Transmission frequency range | 584 - 608 MHz |
| Transmission frequency range | 584 - 608 MHz |
| Channels | 96 (8 groups of 12 channels) |
| Channels | 96 (8 groups of 12 channels) |
| Frequency response | 20 - 20.000 |
| Directivity | Cardioid |
| Groups | 8 |
| Groups | 8 |
| Weight | 5,3 kg |
| Channels | 2 x 96 (8 groups of 12 channels) |
| Groups | 8 |
| Microphone type | Dynamic |
| Inputs | Mini-XLR (3-pin) |
| Antenna inputs | 2 |
| Antenna connector | BNC |
| Frequency response | 30 - 16000 |
| Directivity | Cardioid |
| Nominal impedance | 680 Ohm(s) |
| Frequency response | 60 - 16,000 |
| Signal-to-noise ratio | >90 dB |
| Frequency response | 30 - 16000 |
| Noise reduction | Squelch |
| Rated HF output power | Variable (2mW, 10mW, 30mW) |
| Signal-to-noise ratio | >95 dB |
| Total Harmonic Distortion (THD) | < 0.1 % |
| Signal-to-noise ratio | > 100 dB |
| Rated HF output power | Variable (2mW, 10mW, 30mW) |
| Controls | 2 x arrow keys (up/down value entry) |
| Controls | Power On/Off |
| Controls | Set |
| Indicators | OLED Display |
| Controls | arrow keys (up/down value entry) |
| Controls | menu |
| Controls | Power On/Off |
| Controls | select |
| Audio output, balanced | 2 x XLR |
| Phantom power requierements | 5 V |
| Microphone input | Mini-XLR (3-pin, female) |
| Audio output, unbalanced | 2 x 6.3 mm TS |
| Indicators | OLED Display |
| Operating voltage | 2 x AA battery |
| Operating time | >10 h (with alkaline batteries) |
| Operating voltage | 2 x AA battery |
| Audio mix output, balanced | XLR |
| Audio mix output, unbalanced | 6.3 mm jack |
| Operating time | >10 h (with alkaline batteries) |
| Width | 65 mm |
| Accessories (included) | Foam windscreen |
| Height | 86 mm |
| Depth | 23 mm |
| Max. output level | +10 dBu |
| Weight | 0,049 kg |
| Headphones ouput | 1 |
| Length | 257 mm |
| Diameter | 51 mm |
| Weight | 0,09 kg |
| Headphones outputs | 6.3 mm TRS |
| Other features | detachable antenna |
| Other features | IR frequency synchronisation |
| Other features | Pilot tone squelch, switchable gain |
| Other features | switchable gain |
| Other features | switchable RF power |
| Weight | 0,25 kg |
| Other features | interchangeable capsule |
| Other features | IR frequency synchronisation |
| Other features | Pilot tone squelch, switchable gain |
| Other features | switchable gain |
| Other features | switchable RF power |
| Controls | 2 x volume |
| Controls | Down |
| Controls | Power On/Off |
| Controls | Up |
| Controls | volume |
| Indicators | 2 x OLED Display |
| Operating voltage | 12 V DC, 1000 mA |
| Width | 484 mm |
| Height | 44 mm |
| Depth | 200 mm |
| Weight | 2,05 kg |
| Accessories (included) | 2 x antenna |
| Accessories (included) | Audio cable |
| Accessories (included) | power adapter |
| Other features | channel search function |
| Other features | IR frequency synchronisation |
| Other features | Pilot tone |
