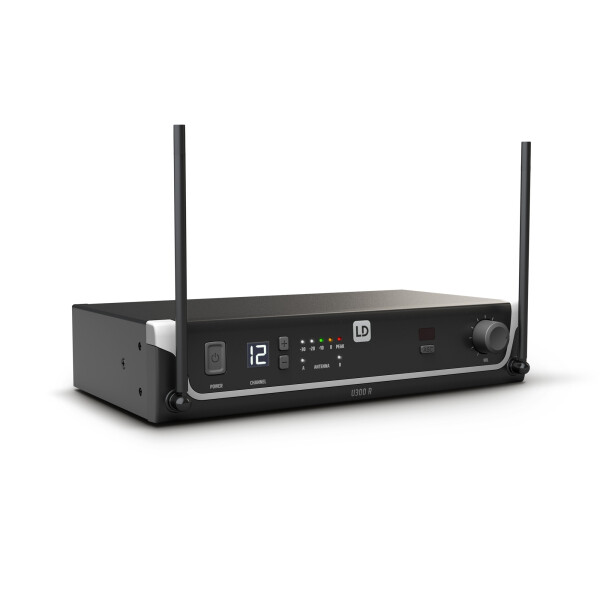

Productinformation in detailOperating in the 584 - 608 Mhz band, this U300 Series diversity UHF receiver features FM technology, 12 channels and a 25Hz - 16 kHz frequency response. It provides convenient one-touch IR syncing with the series' microphone or bodypack transmitters for quick and trouble-free setup while a pilot tone squelch circuit prevents noise and interference. The U305 receiver comes in a stylish metal housing sporting a bright LCD channel display, up and down channel selector buttons plus LED audio level and antenna indicators. The rear panel provides balanced XLR and unbalanced 1/4" outputs. For use with guitar and bass amplifiers, the unbalanced output is switchable to instrument level. The receiver package includes a power adapter and balanced XLR audio cable.
Technical data
| Product type | Wireless Microphone System Accessories |
| Type | Receivers |
| Modulation Type | FM |
| Transmission frequency range | 584 - 608 MHz |
| Channels | 12 |
| Groups | 1 |
| Antenna inputs | 2 x fixed |
| Frequency response | 25 - 16,000 |
| Noise reduction | Squelch |
| Transmission optimization | Pilot tone |
| Total Harmonic Distortion (THD) | < 0.3 % |
| Signal-to-noise ratio | 104 dB |
| Audio output, balanced | XLR |
| Audio output, unbalanced | 6.3 mm jack, switchable unbalanced output level |
| Max. output level | +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu |
| Controls | ASC Sync |
| Controls | Channel down |
| Controls | Channel up |
| Controls | Line/Instrument Level |
| Controls | Power |
| Controls | volume |
| Indicators | 5 LED VU meters |
| Indicators | Antenna A/B |
| Indicators | LC display |
| Operating voltage | 12 V DC - 18 V DC (500 mA), external power supply |
| Width | 211 mm |
| Height | 43 mm |
| Depth | 120 mm |
| Weight | 0,7 kg |
| Accessories (included) | 2 x AA battery |
| Accessories (included) | Audio cable |
| Accessories (included) | Power supply |
| Other features | IR frequency synchronisation |
