400200072 - Crochet à verrouillage automatique Easy noir jusqu’à 250 kg (48 - 51 mm)
PVR 30.50 CHF
29.50 CHF *
disponible
Temps de livraison: 6 - 7 jours ouvrables
Description
Merkmale
Caractéristiques techniques
articles semblables
Variations
Alle Variationen zu diesem ArtikelDescription

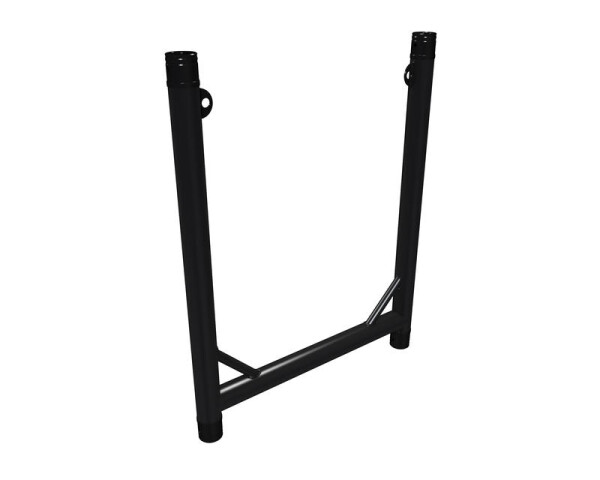

Artikelinfos im DetailWith U-Frame 50 and U-Top 50 Global Truss offers now a highly flexible and completely modular solution for suspended lights. The lightweight system enables a theoretically infinite configuration of single and double suspension as well as ladder systems for various lights - both suspended and upright mounted.
 .
A combination of the two modules can carry a point load of max. 95 kg. By the functional security fasteners of each side of the U-Frame diverse types of lights can be mounted. For ladder configurations up to 10 U-Frame-50 / U-Top-50 combinations can be mounted one below the other, without further rigging actions.
 .
The suspension can be made by the supplied ring eyes or with swivel couplers.
 .
U-Frame and U-Top were developed by Global Truss for quick and easyto- use application in a variety of event environments.
 .
U-Frame 50 and U-Top 50 are available as standard in silver and black. Other colors on request.
Merkmale
| #productDetails.itemInformation# | #productDetails.itemValue# |
|---|---|
| Couleur: | noir |
| Poids de l'article: | 4,40 Kg |
Caractéristiques techniques
General
- Colour black
- Material Al EN AW-6082 T6
main pipe
- Diameter main pipe 50 mm
- Wall thickness main pipe 3 mm
Hardware
- Dimensions (L/W/H) 800 x 615 x 110 mm
- Weight 3,95 kg
