All variations to this product.Description

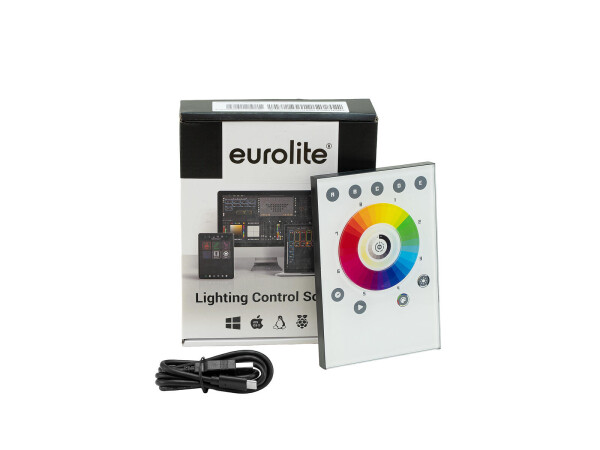

Productinformation in detailDMX wall controller with multi-function touchpad and software, 512 channels
- Flat, wall-mounted stand-alone player for DMX control of light effects without the need for a computer
- Can transmit up to 512 DMX channels
- Write a show in to the stand-alone memory of the player and play back sequences without a computer
- Real-time clock triggering for each scene (day, week, month, year)
- Automatic Scene Recovery if the power is accidently cut off
- Programmable 40 scenes/chases
- Control via DMX; master/slave function; sound to light; Wi-light 2 App
- In connection with Pro DMX 2
firmware can be updated - Flush mounting
- Compatible with Win 7, Win 10, Linux, OS X 10.13 or better
- For application areas such as: Restaurants, bars and hotels; Trade fair and shop fitting; installation
Scope of delivery
- 1 x device
- 1 x USB cable
- 1 x screw plug-in terminal
- 1 x screwdriver
| Power supply: | 9-24V DC 100 mA |
| IP classification: | IP20 |
| Protection class: | Protection class III |
| Power connection: | Via screw terminal |
| Programs: | Programmable 40 scenes/chases |
| DMX channels: | Output 512 |
| Control: | DMX; master/slave function; sound to light; Wi-light 2 App |
| Connections: | Output: screw plug-in terminal RJ-45 (F) mounting version |
| Available storage media: | MicroSD card |
| USB port: | Type C |
| Material: | Glass; plastic |
| Color: | White |
| PC connect: | Pro DMX 2, firmware can be updated |
| Housing design: | Flush mounting |
| Dimensions: | Width: 9.8 cm Depth: 1.3 cm Height: 14.4 cm |
| Weight: | 0.22 kg |
| Operating system: | Win 7, Win 10, Linux, OS X 10.13 or better |
Technical data
| Power supply: | 9-24V DC 100 mA |
| IP classification: | IP20 |
| Protection class: | Protection class III |
| Power connection: | Via screw terminal |
| Programs: | Programmable 40 scenes/chases |
| DMX channels: | Output 512 |
| Control: | DMX; master/slave function; sound to light; Wi-light 2 App |
| Connections: | Output: screw plug-in terminal RJ-45 (F) mounting version |
| Available storage media: | MicroSD card |
| USB port: | Type C |
| Material: | Glass; plastic |
| Color: | White |
| PC connect: | Pro DMX 2, firmware can be updated |
| Housing design: | Flush mounting |
| Dimensions: | Width: 9.8 cm Depth: 1.3 cm Height: 14.4 cm |
| Weight: | 0.22 kg |
| Operating system: | Win 7, Win 10, Linux, OS X 10.13 or better |
