All variations to this product.Description

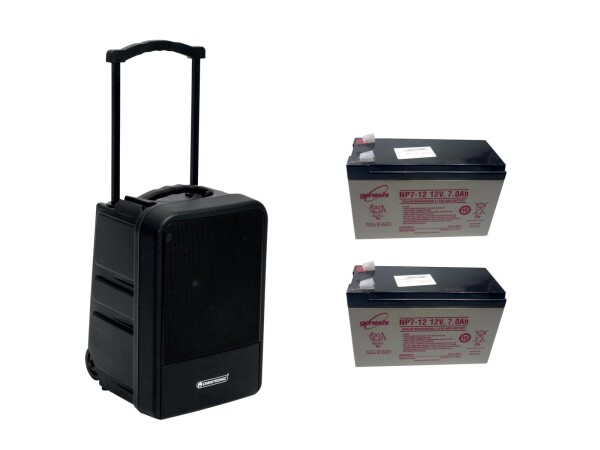

Productinformation in detailObile PA system with battery operation and different equipment options including 2x battery
OMNITRONIC MOM-10BT4 Modular Wireless PA System
Mobile PA system with battery operation and different equipment options
- Wireless PA system with modular structure for maximum flexibility
- Wireless audio link operation of several MOM-10BT4 systems for larger events
- Flexible use: mono operation with several systems or stereo operation with 2 systems linked together
- High-power 2-way speaker system with 25 cm (10") woofer
- 3 extension slots for retrofitting wireless receivers
- 1 extension slot for retrofitting an audio link module
- 1 extension slot for retrofitting a CD/MP3 player with SD slot and USB port
- Microphone inputs with adjustable reverb effect
- Line input (XLR und Cinch), switchable stereo/mono
- Microphone inputs, line input and Bluetooth module with separate volume controls
- Mixer section with common master control and 2-band tone control
- Stereo/mono switch for the master signal during audio link operation
- Additional XLR output for linking several systems via cable
- Switchable microphone priority circuit - ideal for presentations
- Ergonomic design
- Control via Bluetooth
- Supported codecs: AAC, SBC
- 2.4 GHz license-free worldwide
- Trolley
- For application areas such as: Theater; mobile use; Wedding/gala/events; product presentations and lectures
- Black metal grille
- Rugged carrying handle
- Integrated automatic charging of the battery and status indicator
Battery pack
- Battery pack must be ordered separately
- Cordless, flexible and versatile
- Battery operation up to 8h
Package contents
- 1 x compact cabinet speaker, 1 x antenna, 1 x power cord, 1 x user manual, 1 x declaration of conformity
ACCESSORY Battery 12V/7000mAh
Maintenance-free lead acid battery
- High energy densitiy
- Long life
- Sealed leak proof construction
- Cordless, flexible and versatile
| Weight: | 23,51 kg |
| OMNITRONIC MOM-10BT4 Modular Wireless PA System | |
| Power supply: | 230 V AC, 50 Hz Or 12 V DC |
| Power consumption: | Max. 100 W |
| Output power: | Max. 160 W 80 W RMS |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Battery/battery pack (not included) |
| Frequency range: | 50 - 18000 Hz |
| THD: | <1 % at 1 kHz |
| Control: | Bluetooth |
| Bluetooth: | Version: 4,0 Profiles: A2DP |
| Bluetooth device name: | OMNITRONIC |
| Supported codecs: | AAC, SBC |
| Frequency band: | 2.4 GHz |
| Attachment system: | Flange: Ø 35mm |
| Circuitry: | Class D |
| Status LED: | Charge status indicator, pairing |
| Connections: | Input: line via 1 x stereo RCA Input: line via 1 x 3-pin XLR Input: Microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR |
| Input channels: | 2 x mono via Combination socket (XLR/jack), channel control via Rotary dial 1 x mono + stereo via XLR or RCA, channel control via Rotary dial |
| Speaker: | 1 x woofer 10" Tweeter 1" |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |
| Carrying handle: | 1 pc/pcs |
| Transport aid: | Trolley |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 33,5 cm Depth: 37,5 cm Height: 53,5 cm |
| Weight: | 15,75 kg |
| Battery pack | |
| Battery pack type: | 2 x lead 12 V, 7000 mAh, 84 Wh |
| Battery pack: | Battery operation up to 8h Recharging time 5h |
| ACCESSORY Battery 12V/7000mAh | |
| Battery pack type: | 1 x lead 12 V, 7000 mAh, |
| Connections: | 6.3 mm flat plug |
| Dimensions: | Width: 16,1 cm Depth: 6,5 cm Height: 10 cm |
| Weight: | 2,33 kg |
Technical data
| Weight: | 20,41 kg |
| OMNITRONIC MOM-10BT4 Modular Wireless PA System | |
| Power supply: | 230 V AC, 50 Hz Or 12 V DC |
| Power consumption: | Max. 100 W |
| Output power: | Max. 160 W 80 W RMS |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Battery/battery pack (not included) |
| Frequency range: | 50 - 18000 Hz |
| THD: | <1 % at 1 kHz |
| Control: | Bluetooth |
| Bluetooth: | Version: 4,0 Profiles: A2DP |
| Supported codecs: | AAC, SBC |
| Circuitry: | Class D |
| Status LED: | Charge level, pairing |
| Connections: | Input: line via 1 x stereo RCA Input: line via 1 x 3-pin XLR Input: Microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR |
| Input channels: | 2 x mono via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial 1 x mono + stereo via XLR or RCA, channel control via Rotary dial |
| Frequency band: | 2.4 GHz |
| Speaker: | 1 x woofer (10") approx. 25 cm Tweeter (1") approx. 2,5 cm |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |
| Transport aid: | Trolley |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 33,5 cm Depth: 37,5 cm Height: 53,5 cm |
| Weight: | 15,75 kg |
| Battery pack | |
| Battery pack type: | 2 x lead 12 V, 7000 mAh, 84 Wh |
| Battery pack: | Battery operation up to 8h Recharging time 5h |
| ACCESSORY Battery 12V/7000mAh | |
| Battery pack type: | 1 x lead 12 V, 7000 mAh, |
| Connections: | 6.3 mm flat plug |
| Dimensions: | Width: 16,1 cm Depth: 6,5 cm Height: 10 cm |
| Weight: | 2,33 kg |
