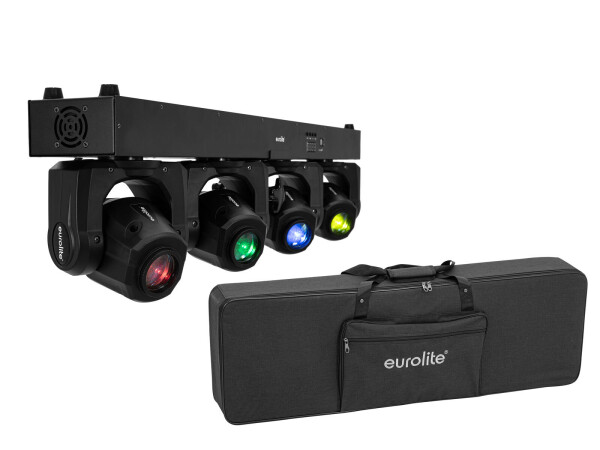

Productinformation in detailEUROLITE LED TMH Bar S120 Moving Head Spots
LED lighting system with 4 individually controllable 30 W moving heads, gobo- and color wheel
- 4 powerful LEDs 30 W COB (chip-on-board)
- Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution (optional)
- Gobo wheel with static gobos; Focus manual; color wheel
- Gobo wheel with static gobos, 7 gobos and open
shake effect - Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed - Strobe effect; beam effect
- Positioning within 540° PAN, 180° TILT
- Exact positioning (16 bit resolution)
- Dimmer electronic
- Flicker-free
- With a beam angle of 13°
- Crossbar with integrated DMX control unit and stand sleeve
- With Omega bracket
- 4 digit 7-segment LED display
- Rubber feet
- The device is cooled by temperature-controlled fan
- Mains input and output for power linking up to 8 units
- Preprogrammed in Colorchief; Light´J; Light Captain
- For application areas such as: Clubs/dancing school; Wedding/gala/events; Party room; mobile djs / entertainer
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 2 x safety eyelet
EUROLITE Soft Bag for LED TMH Bar
Transport bag
- With acessory pocket in the cover
- Interior with foam padding
cover with foam padding - 2 carrying straps
| Weight: | 14,99 kg |
| EUROLITE LED TMH Bar S120 Moving Head Spots | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 100 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 4 x 30 W COB (chip-on-board) |
| Max. TILT movement: | 180° Positioning; Exact positioning (16 bit resolution) |
| Max. PAN movement: | 540° Positioning; Exact positioning (16 bit resolution) |
| Equipment: | Gobo wheel with static gobos; Focus manual; color wheel |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open Shake effect |
| DMX channels: | 3; 5; 9; 11; 17; 21; 30; 38 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution (optional) |
| Preprogrammed in: | Colorchief; Light´J; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | 13° |
| Color temperature: | 7300K |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 8899 lx, 3m: 856 lx, 6m: 205 lx |
| Housing color: | Black |
| Attachment system: | 2x Omega bracket |
| Display type: | 4 digit 7-segment LED display |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 1 m Depth: 17,5 cm Height: 28,0 cm |
| Weight: | 13,00 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| EUROLITE Soft Bag for LED TMH Bar | |
| Maximum load: | 25 kg |
| Carrying strap: | 2 pc/pcs |
| Color: | Black |
| Inside dimensions: | 1 m x 26 cm x 12 cm |
| Dimensions: | Length: 1,14 m Width: 16,5 cm Height: 38 cm |
| Weight: | 1,99 kg |
Technical data
| Weight: | 14,99 kg |
| EUROLITE LED TMH Bar S120 Moving Head Spots | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 100 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 4 x 30 W COB (chip-on-board) |
| Max. TILT movement: | 180° positioning; exact positioning (16 bit resolution) |
| Max. PAN movement: | 540° positioning; exact positioning (16 bit resolution) |
| Flash rate: | 2 - 14 Hz |
| Equipment: | Gobo wheel with static gobos; focus manual; color wheel |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open Shake effect |
| DMX channels: | 3; 5; 9; 11; 17; 21; 30; 38 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution (optional) |
| Preprogrammed in: | Colorchief; Light´J; Light Captain |
| Projection: | Flicker-free |
| PWM frequency: | 11000 Hz |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | 13° |
| Color temperature: | 7300K |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 8899 lx, 3m: 856 lx, 6m: 205 lx |
| Housing color: | Black |
| Attachment system: | 2x omega bracket |
| Display type: | 4 digit 7-segment LED display |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 100,0 cm Depth: 17,5 cm Height: 28,0 cm |
| Weight: | 13,00 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| EUROLITE Soft Bag for LED TMH Bar | |
| Maximum load: | 25 kg |
| Carrying strap: | 2 pc/pcs |
| Color: | Black |
| Inside dimensions: | 100 cm x 26 cm x 12 cm |
| Dimensions: | Length: 114 cm Width: 16,5 cm Height: 38 cm |
| Weight: | 1,99 kg |
