Description
Technical data
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

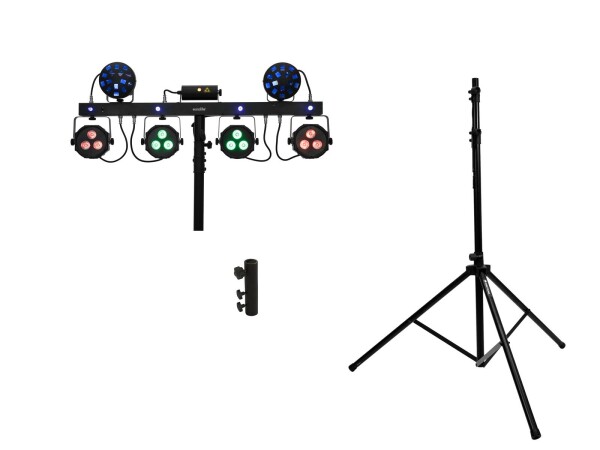

Productinformation in detailEUROLITE LED KLS Laser Bar Next FX Light Set
Bar with powerful spots, UV strobe LEDs, laser (RG, 2M), QuickDMX port and carrying bag
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating derbies for mirror ball effects
- Compact lightweight
- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- For application areas such as: Wedding/gala/events; Clubs/dancing school; mobile djs / entertainer; small rental
- When fog is used, this effect becomes especially attractive
- 26 integrated show programs
- Dimmer electronic; color blend stepless; program selection
- Control via DMX; stand-alone; Sound to light via Microphone; IR remote control; QuickDMX via USB (optional); Wireless footswitch (optional)
- TV pin
- With Mounting bracket
- Mains input and output for power linking up to 8 units
- Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3
- Application possibility: On tripod
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight
- 3 powerful LEDs 4 W high-power 4in1 QCL RGB/WW (homogenous color mix)
4 spots controlled separately - With a beam angle of 7°
light effect
- 4 powerful LEDs 3 W high-power R/G/B/WW
lighting effects controlled separately - Multi beam effect; fan effect; flower effect
bar
- 4 powerful LEDs 1,5 W high-power ultra violet (UV)
LEDs controlled separately - UV effect; Strobe effect
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x bag, 1 x declaration of conformity, 1 x remote control, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x terminating plug (power)
OMNITRONIC M-4 Speaker-System Stand
Aluminum speaker stand, height adjustable 140-345 cm, maximum load 18 kg
- Durable aluminum version
- Tube diameter: Ø 35 mm
- Adjustable height
Package contents
- 1 x user manual
EUROLITE STV-3529 Adapter long
Massive adapter for 35 mm tube, 28 mm TV spigot, maximum load WLL 100 kg
- For stands with telescopic tube 35 mm
- Connection element for cross beam with 28 mm spigot
- With M6 and M8 fixation screw
- Heavy version for highest stability
- TV pin
Package contents
- 1 x device, 1 x user manual, 2 x knurled screw
| Weight: | 15,30 kg |
| EUROLITE LED KLS Laser Bar Next FX Light Set | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 90 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: | 3 m |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| DMX channels: | 6; 8; 11; 21; 25; 29 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; Sound to light via Microphone; IR remote control; QuickDMX via USB (optional); Wireless footswitch (optional) |
| Preprogrammed in: | Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Housing color: | Black |
| Attachment system: | TV spigot Ø 28mm 2x Mounting bracket |
| Display type: | 3 digit 7-segment LED display |
| Dimensions: | Width: 1,11 m Depth: 15 cm Height: 41 cm |
| Weight: | 10,50 kg |
| Noise classification: | Class 2 (slight noise) |
| Laser | |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm Green (G) 30 mW 532nm |
| Spotlight | |
| LED: | 3 x 4 W high-power 4in1 QCL RGB/WW (homogenous color mix) |
| Beam angle: | 7° |
| Beam angle (1/2 peak): | Spot 7° |
| Beam angle (1/10 peak): | Spot 20° |
| Light effect | |
| LED: | 4 x 3 W high-power R/G/B/WW |
| Bar | |
| LED: | 4 x 1,5 W high-power ultra violet (UV) |
| Flash rate: | 0 - 30 Hz |
| Remote control | |
| Battery: | Button cell 3.0 V CR2025 lithium manganese built-in |
| OMNITRONIC M-4 Speaker-System Stand | |
| Maximum carrying capacity: | 18 kg |
| Tube diameter sector: | 38 - 35 mm |
| Height: | Maximum: 345 cm Minimum: 140 cm Adjustable in 10 steps with locking pin |
| Attachment system: | Ø 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Aluminum |
| Color: | Black |
| Transport dimensions: | 1,4 m x 13,5 cm |
| Weight: | 3,30 kg |
| EUROLITE STV-3529 Adapter long | |
| Maximum load BGV C1 (8-fold): | 50 kg |
| Max. load WLL (4-fold): | 100 kg |
| Attachment system: | TV spigot Ø 28mm Ø 35mm |
| Type (general stands): | Accessory |
| Material: | Steel, 6 mm, powder-coated |
| Dimensions: | Width: 8,50 cm Depth: 5 cm Height: 19,50 cm |
| Weight: | 1,50 kg |
Technical data
| Weight: | 15,30 kg |
| EUROLITE LED KLS Laser Bar Next FX Light Set | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 90 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: | 3 m |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | Spot 3 x 4 W high-power 4in1 QCL RGB/WW (homogenous color mix) Multi beam effect 4 x 3 W high-power R/G/B/WW Strobe effect 4 x 1,5 W high-power ultra violet (UV) |
| Flash rate: | 0 - 30 Hz |
| DMX channels: | 6; 8; 11; 21; 25; 29 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; Sound to light via Microphone; IR remote control; Light Captain; QuickDMX via USB (optional); Wireless footswitch (optional); EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 7° |
| Beam angle (1/2 peak): | Spot 7° |
| Beam angle (1/10 peak): | Spot 20° |
| Housing color: | Black |
| Attachment system: | TV spigot Ø 28mm 2x Mounting bracket |
| Display type: | 3 digits 7-segment LED display |
| Dimensions: | Width: 1,11 m Depth: 15 cm Height: 41 cm |
| Weight: | 10,50 kg |
| Noise classification: | Class 2 (slight noise) |
| Laser | |
| Laser class: | Class 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm Green (G) 30 mW 532nm |
| Remote control | |
| Battery: | Button cell 3.0 V CR2025 lithium manganese built-in |
| OMNITRONIC M-4 Speaker-System Stand | |
| Maximum carrying capacity: | 18 kg |
| Tube diameter sector: | 38 - 35 mm |
| Height: | Maximum: 345 cm Minimum: 140 cm |
| Attachment system: | Ø 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Aluminum |
| Color: | Black |
| Transport dimensions: | 1,4 m x 13,5 cm |
| Weight: | 3,30 kg |
| EUROLITE STV-3529 Adapter long | |
| Maximum load BGV C1 (8-fold): | 50 kg |
| Max. load WLL (4fold): | 100 kg |
| Attachment system: | TV spigot Ø 28mm Ø 35mm |
| Type (general stands): | Accessory |
| Material: | Steel, 6 mm, powder-coated |
| Dimensions: | Width: 8,50 cm Depth: 5 cm Height: 19,50 cm |
| Weight: | 1,50 kg |
