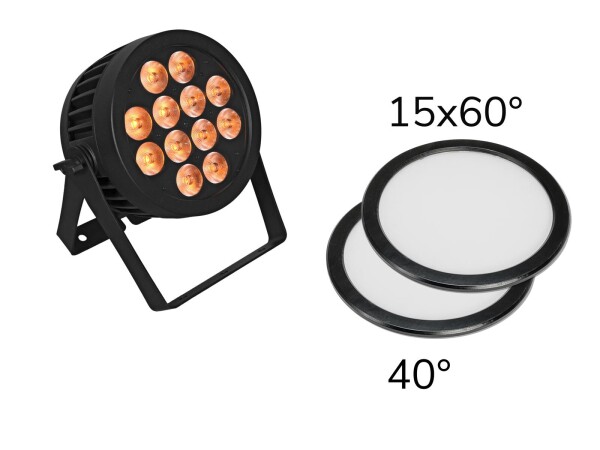

Productinformation in detailWeather-proof spotlight with 12 QCL LEDs and RGBW color mixing incl. 2x diffusor cover
EUROLITE LED IP PAR 12x8W QCL Spot
Weather-proof (IP65) spotlight with 12 x 8 W LED and 4in1 QCL RGBW color mixing
- 12 powerful LEDs 8 W 4in1 QCL RGBW (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect
- Direct color selection for 25 preset colors
- The device is cooled by passive convection cooling
- Control via DMX; IR remote control; stand-alone
- Flicker-free
- With a beam angle of 15°
- With double bracket
- LCD display
- Suitable for outdoor use IP65
- Silent operation
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- With pressure compensation membrane
- For application areas such as: Installation; Stage; Rental; architecture
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual
EUROLITE Diffuser Cover 15x60° for IP PAR-12
Package contents
- 1 x diffusor cover
EUROLITE Diffuser Cover 40° for IP PAR-12
Package contents
- 1 x diffusor cover
| Weight: | 5,43 kg |
| EUROLITE LED IP PAR 12x8W QCL Spot | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 75 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: | IP T-Con (F) mounting version |
| Fuse: | T 5 A Fuse fix on board |
| Lamp type: | LED lamp |
| LED: | 12 x 8 W 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: | 3; 4; 5; 6; 10 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | DMX; IR remote control; stand-alone |
| Preprogrammed in: | LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Projection: | Flicker-free |
| Beam angle: | 15° |
| Beam angle (1/2 peak): | 15° |
| Beam angle (1/10 peak): | 30° |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Display type: | LCD display |
| Material: | Aluminum casting |
| Dimensions: | Width: 28,5 cm Depth: 15,3 cm Height: 31,35 cm |
| Weight: | 5,20 kg |
| Noise classification: | Class 0 (no noise at all); Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Power cord | |
| Cable construction: | 3 x 1,0 mm² H05RN-F |
| Cable length: | Approx. 1,2 m |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø11mm |
| Material: | Metal, 2,5 mm |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| EUROLITE Diffuser Cover 15x60° for IP PAR-12 | |
| Dimensions: | Height: 7 mm Diameter: Ø 22,20 cm |
| Weight: | 110 g |
| EUROLITE Diffuser Cover 40° for IP PAR-12 | |
| Dimensions: | Height: 6,5 mm Diameter: Ø 22,20 cm |
| Weight: | 120 g |
Technical data
| Weight: | 5,43 kg |
| EUROLITE LED IP PAR 12x8W QCL Spot | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 75 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: | IP T-Con (F) mounting version |
| Lamp type: | LED lamp |
| LED: | 12 x 8 W 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: | 3; 4; 5; 6; 10 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | DMX; IR remote control; stand-alone; Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 15° |
| Beam angle (1/2 peak): | 15° |
| Beam angle (1/10 peak): | 29° |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Display type: | LCD display |
| Dimensions: | Width: 28,5 cm Depth: 15,3 cm Height: 31,35 cm |
| Weight: | 5,20 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| EUROLITE Diffuser Cover 15x60° for IP PAR-12 | |
| Dimensions: | Diameter: Ø 22,20 cm |
| Weight: | 110 g |
| EUROLITE Diffuser Cover 40° for IP PAR-12 | |
| Dimensions: | Diameter: Ø 22,20 cm |
| Weight: | 120 g |
