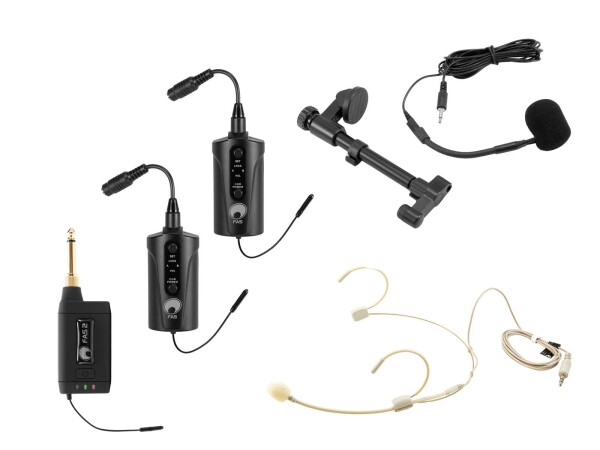

Productinformation in detailOMNITRONIC FAS TWO 2-Channel Wireless Receiver 660-690MHz
License-free miniature wireless microphone system, digital modulation, high ease of use
- 2 frequency banks with 20 adjustable frequencies each available
- Quick pairing at the touch of a button
- Receiver automatically adopts frequency setting
- Ultra-low latency
- Digital transmission provides for high resistance to interference and unique sound quality
- Small lightweight version
- Multiple receivers can be combined with 2 transmitters as desired
- Battery operation up to 5h
- Operating range up to 30m with line-of-sight
- Sample rate: 48 kHz
- Cordless, flexible and versatile
- UHF 660 - 690 MHz License-free and approved in large parts of Europe
- For application areas such as: Wedding/gala/events; mobile use; mobile djs / entertainer; restaurants, bars and hotels; small rental; product presentations and lectures
Package contents
- 1 x receiver, 1 x adapter, 1 x external mains adapter, 1 x uSB cable, 1 x user manual, 1 x declaration of conformity
OMNITRONIC FAS Bodypack 660-690MHz
Minature bodypack transmitter for FAS-TWO receiver
- Digital transmission provides for high resistance to interference and unique sound quality
- Ultra-low latency
- Quick pairing at the touch of a button
- Receiver automatically adopts frequency setting
- 2 frequency banks with 20 adjustable frequencies each available
- Small lightweight version
- Battery operation up to 5h
- Operating range up to 30m with line-of-sight
- Wide range of microphones available for numerous applications
- Cordless, flexible and versatile
- UHF 660 - 690 MHz License-free and approved in large parts of Europe
Package contents
- 1 x transmitter, 1 x user manual, 1 x declaration of conformity
OMNITRONIC FAS Headset for Bodypack
Accessory microphone for FAS bodypack
- Polar pattern: Omnidirectional
- For application areas such as: Clubs/dancing school; sports centres/gyms
Package contents
- 1 x microphone, 1 x user manual
OMNITRONIC FAS Acoustic Guitar Microphone for Bodypack
Accessory microphone for FAS bodypack
- Polar pattern: Hyper cardoid
- For application areas such as: Stage; Band/rehearsal room
Package contents
- 1 x microphone, 1 x windshield, 1 x bag, 1 x user manual
| Weight: | 380 g |
| OMNITRONIC FAS TWO 2-Channel Wireless Receiver 660-690MHz | |
| Type: | Receiver |
| Power supply: | 5 V DC 1 A |
| Power connection: | Mains input via USB C (W) mounting version power supply cord with AC adapter included Battery/battery pack built-in |
| Battery pack type: | 1 x lithium ion 3,7 V, 800 mAh, 3,96 Wh |
| Battery pack: | Battery operation up to 5h |
| Number of channels: | 2 |
| Frequency range: | 60 - 15000 Hz |
| S/N ratio: | >92 dB |
| THD: | <0,8 % at 1 kHz |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | UHF 660 - 690 MHz |
| Modulation: | Pi/4 DQPSK |
| Frequency selection: | 40 In 2 groups Frequencies automatically scannable Switchable frequencies |
| Sample rate: | 48 kHz |
| Status LED: | Power, chanal source |
| Connections: | Output: mic/line via 1 x 3.5 mm jack (mono) |
| Max. level: | Output: mic/line -1,90 dBu, unbal. |
| Material: | Metal |
| Color: | Black |
| Weight: | 140 g |
| Receiver | |
| Dimensions: | Length: 17 cm Width: 3,6 cm Height: 2,2 cm |
| Weight: | 50 g |
| OMNITRONIC FAS Bodypack 660-690MHz | |
| Type: | Pocket transmitter |
| Power supply: | 5 V DC 1 A |
| Power connection: | Mains input via USB C (W) mounting version Battery/battery pack built-in |
| Battery pack type: | 1 x lithium ion 3,7 V, 600 mAh, 2,2 Wh |
| Battery pack: | Battery operation up to 5h |
| Number of channels: | 1 |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | UHF 660 - 690 MHz |
| RF power output: | 10 mW |
| Modulation: | Pi/4 DQPSK |
| Frequency selection: | 40 In 2 groups Frequencies automatically scannable Switchable frequencies |
| Status LED: | Power |
| Connections: | Input: mic/line via 1 x 3.5 mm jack (stereo) mounting version |
| Max. level: | Input: mono -1,5 dBu, unbal. |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Length: 21 cm Width: 3,05 cm Height: 2,9 cm |
| Weight: | 34 g |
| OMNITRONIC FAS Headset for Bodypack | |
| Type: | Headset microphone |
| Power supply: | 2-10 V DC |
| Cable length: | 1,2 m |
| Capsule type: | Condenser Size: Ø 3 mm x 1,5 mm |
| Polar pattern: | Omnidirectional |
| Frequency range: | 20 - 18000 Hz |
| S/N ratio: | >63 dB |
| Sensitivity: | -47 dB |
| Impedance: | 680 Ohm |
| Connections: | 3.5 mm jack (mono) |
| Material: | Metal |
| Color: | Skin-colored |
| Weight: | 20 g |
| OMNITRONIC FAS Acoustic Guitar Microphone for Bodypack | |
| Type: | Microphone for instruments |
| Power supply: | 2-10 V DC |
| Power connection: | Mains input via 3.5 mm jack (mono) |
| Cable length: | 2,72 m |
| Capsule type: | Condenser Size: Ø 14 mm x 6,4 mm |
| Polar pattern: | Hyper cardoid |
| Frequency range: | 40 - 18000 Hz |
| S/N ratio: | >60 dB |
| Sensitivity: | -47 dB |
| Impedance: | 680 Ohm |
| Clamp area: | 90 - 132 mm |
| Connections: | 3.5 mm jack (mono) |
| Material: | Metal; plastic |
| Color: | Black |
| Weight: | 140 g |
Technical data
| Weight: | 930 g |
| OMNITRONIC FAS TWO 2-Channel Wireless Receiver 660-690MHz | |
| Type: | Receiver |
| Power supply: | 5 V DC 1 A |
| Power connection: | Mains input via USB C (M) mounting version power supply cord with AC adapter included Battery/battery pack built-in |
| Battery pack type: | 1 x lithium ion 3,7 V, 800 mAh, 3,96 Wh |
| Battery pack: | Battery operation up to 5h |
| Number of channels: | 2 |
| Frequency range: | 60 - 15000 Hz |
| S/N ratio: | >92 dB |
| THD: | <0,8 % at 1 kHz |
| Sample rate: | 48 kHz |
| Status LED: | Power, chanal source |
| Connections: | Output: mic/line via 1 x 3.5 mm jack (mono) |
| Frequency band: | UHF 660 - 690 MHz |
| Frequency selection: | 40 In 2 groups Frequencies automatically scannable Switchable frequencies |
| Modulation: | Pi/4 DQPSK |
| Max. level: | Output: mic/line -1,90 dBu, unbal. |
| Range: | Range up to 30m with line-of-sight |
| Material: | Metal |
| Color: | Black |
| Weight: | 140 g |
| Receiver | |
| Dimensions: | Length: 17 cm Width: 3,6 cm Height: 2,2 cm |
| Weight: | 50 g |
| OMNITRONIC FAS Bodypack 660-690MHz | |
| Type: | Pocket transmitter |
| Power supply: | 5 V DC 1 A |
| Power connection: | Mains input via USB C (M) mounting version Battery/battery pack built-in |
| Battery pack type: | 1 x lithium ion 3,7 V, 600 mAh, 2,2 Wh |
| Battery pack: | Battery operation up to 5h |
| Number of channels: | 1 |
| Status LED: | Power |
| Connections: | Input: mic/line via 1 x |
| Frequency band: | UHF 660 - 690 MHz |
| Frequency selection: | 40 In 2 groups Frequencies automatically scannable Switchable frequencies |
| Modulation: | Pi/4 DQPSK |
| RF power output: | 10 mW |
| Max. level: | Input: mono -1,5 dBu, unbal. |
| Range: | Range up to 30m with line-of-sight |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Length: 21 cm Width: 3,05 cm Height: 2,9 cm |
| Weight: | 34 g |
| OMNITRONIC FAS Headset for Bodypack | |
| Type: | Headset |
| Power supply: | 2-10 V DC |
| Cable length: | 1,2 m |
| Capsule type: | Condenser Size: Ø 3 mm x 1,5 mm |
| Polar pattern: | Omnidirectional |
| Frequency range: | 20 - 18000 Hz |
| S/N ratio: | >63 dB |
| Sensitivity: | -47 dB |
| Impedance: | 680 Ohm |
| Connections: | 3.5 mm jack (mono) |
| Material: | Metal |
| Color: | Skin-colored |
| Weight: | 20 g |
| OMNITRONIC FAS Acoustic Guitar Microphone for Bodypack | |
| Type: | Microphone for instruments |
| Power supply: | 2-10 V DC |
| Power connection: | Mains input via 3.5 mm jack (mono) |
| Cable length: | 2,72 m |
| Capsule type: | Condenser Size: Ø 14 mm x 6,4 mm |
| Polar pattern: | Hyper cardoid |
| Frequency range: | 40 - 18000 Hz |
| S/N ratio: | >60 dB |
| Sensitivity: | -47 dB |
| Impedance: | 680 Ohm |
| Clamp area: | 90 - 132 mm |
| Connections: | 3.5 mm jack (mono) |
| Material: | Metal; plastic |
| Color: | Black |
| Weight: | 140 g |
