All variations to this product.Description

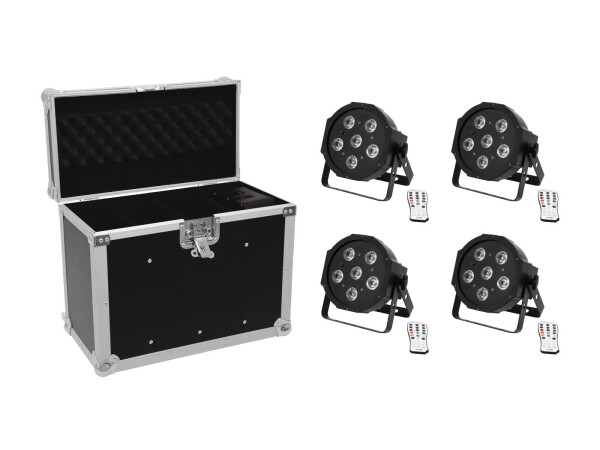

Productinformation in detail4x flat spotlight with 5 x 3 W 3in1 LED including practical flightcase
EUROLITE LED SLS-603 TCL + UV Floor
Flat spotlight with 5 x 3 W 3in1 LED (RGB) and one 3 W UV LED, incl. IR remote control
- Slim design for space-saving applications
- DMX and power terminals intelligently designed for easy wiring
- 6 powerful LEDs 3 W high-power 4in1 QCL RGB/UV (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- UV effect; Strobe effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function
- With a beam angle of 11°
- With double bracket
- 4 digit 7-segment LED display
- Preprogrammed in Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- Application possibility: Standing; suspended; on stand
- For application areas such as: Clubs/dancing school; Wedding/gala/events; Party room; mobile djs / entertainer
Package contents
- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual
ROADINGER Flightcase EC-SL4M 4x SLS size M
Trunk case
- With 4 Device compartments
- High-quality workmanship with plywood multi-layer glued 7 mm, dark brown, laminated
- Interior with felt cover
- Aluminum profile frames 30mm with rounded edges
- Hinged, chromium plated case handle
- 2 chrome tip-over locks
- 1 high-quality butterfly lock
- Rubber feet
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Weight: | 14,06 kg |
| EUROLITE LED SLS-603 TCL + UV Floor | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 20 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Lamp type: | LED lamp |
| LED: | 6 x 3 W high-power 4in1 QCL RGB/UV (homogenous color mix) |
| DMX channels: | 4; 8 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | 1 x cooling fan |
| Control: | Stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function |
| Preprogrammed in: | Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 11° |
| Beam angle (1/2 peak): | 11° |
| Beam angle (1/10 peak): | 28° |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Plastic; metal; ABS Acrylonitrile butadiene styrene |
| Dimensions: | Width: 23 cm Depth: 11 cm Height: 23 cm |
| Weight: | 1,41 kg |
| Noise classification: | Class 2 (slight noise) |
| Photobiological safety: | Risk Group 0 |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 1,1 m |
| Mounting bracket | |
| Diameter mounting holes: | 5 x Ø11mm |
| Material: | Metal, 2 mm |
| Color: | Black |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase EC-SL4M 4x SLS size M | |
| Maximum load: | 25 kg |
| Aluminum profile frames: | 30 mm |
| Case handle: | 1 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 1 pc/pcs |
| Transport aid: | Rubber feet |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Dark brown, laminated; black, laminated |
| Compartment dimensions: | 11,5 cm x 24,5 cm x 34 cm |
| Inside dimensions: | 49 cm x 25 cm x 39 cm |
| Dimensions: | Width: 52,5 cm Depth: 28,5 cm Height: 44,5 cm |
| Weight: | 8,40 kg |
Technical data
| Weight: | 14,06 kg |
| EUROLITE LED SLS-603 TCL + UV Floor | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 20 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Lamp type: | LED lamp |
| LED: | 6 x 3 W high-power 4in1 QCL RGB/UV (homogenous color mix) |
| DMX channels: | 4; 8 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | 1 x cooling fan |
| Control: | Stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 11° |
| Beam angle (1/2 peak): | 11° |
| Beam angle (1/10 peak): | 28° |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Display type: | 4 digits 7-segment LED display |
| Material: | Plastic |
| Dimensions: | Width: 23 cm Depth: 11 cm Height: 23 cm |
| Weight: | 1,41 kg |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 1,1 m |
| Mounting bracket | |
| Pieces: | 2 Stk |
| Diameter mounting holes: | 5 x Ø11mm |
| Material: | Metal, 2 mm |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase EC-SL4M 4x SLS size M | |
| Maximum load: | 25 kg |
| Aluminum profile frames: | 30 mm |
| Case handles: | 1 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 1 pc/pcs |
| Transport aid: | Rubber feet |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Dark brown, laminated; black, laminated |
| Compartment dimensions: | 11,5 cm x 24,5 cm x 34 cm |
| Inside dimensions: | 49 cm x 25 cm x 39 cm |
| Dimensions: | Width: 52,5 cm Depth: 28,5 cm Height: 44,5 cm |
| Weight: | 8,40 kg |
