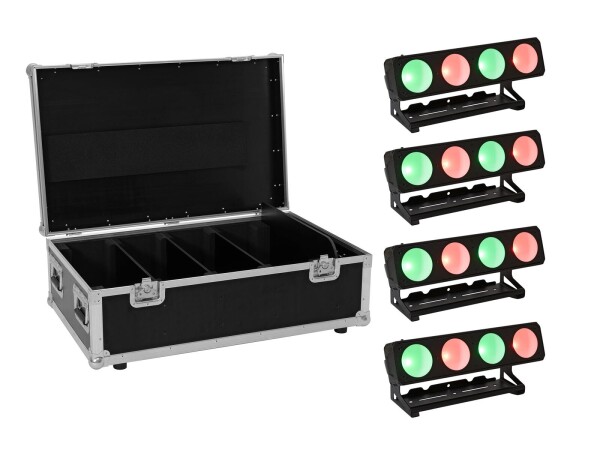

Artikelinfos im DetailEUROLITE LED PMB-4 COB QCL 30W Bar
LED light effect bar with RGBW color mixing, incl. IR remote control
- 4 powerful LEDs 30 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect
- Integrated show programs
- Direct color selection for 27 preset colors
- The device is cooled by low-noise cooling fan
- Control via stand-alone; IR remote control; DMX; master/slave function; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 1; EASY SHOW 3; Light´J; Colorchief
- Flicker-free
- With a beam angle of 45°
- With mounting bracket
- LCD display
- Mains input and output for power linking up to 8 units
- For application areas such as: Wedding/gala/events; Trade fair and shop fitting; stage; theater; rental
- Very quiet working noise
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x light effect, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual
ROADINGER Flightcase 4x LED PMB-4 COB QCL with wheels
Trunk case with castors, PRO version
- High-quality workmanship with birch multiplex 9 mm, black, laminated
- Interior with foam padding
cover with foam padding - Aluminum profile frames 25mm with rounded edges
- 4 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- 4 x castors with 2 locking brakes
- PENN Hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Weight: | 41,65 kg |
| EUROLITE LED PMB-4 COB QCL 30W Bar | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 110 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 4 x 30 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 3; 4; 5; 6; 8; 16; 20 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 2 x low-noise cooling fan |
| Control: | Stand-alone; IR remote control; DMX; master/slave function; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain; EASY SHOW 2; EASY SHOW 1; EASY SHOW 3; Light´J; Colorchief |
| Projection: | Flicker-free |
| Beam angle: | 45° |
| Beam angle (1/2 peak): | 45° |
| Beam angle (1/10 peak): | 74° |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | LCD display |
| Material: | Aluminum casting; metal |
| Dimensions: | Length: 49,0 cm Depth: 16,3 cm Height: 20,6 cm |
| Weight: | 5,75 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Photobiological safety: | Risk Group 0 |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø11mm; 1 x Ø10mm; 2 x Ø8mm; 2 x Ø6mm |
| Material: | Metal, 3 mm |
| Power cord | |
| Cable construction: | 3 x 1,0 mm² H05RN-F |
| Cable length: | Approx. 1,2 m |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 4x LED PMB-4 COB QCL with wheels | |
| Maximum load: | 100 kg |
| Aluminum profile frames: | 25 mm |
| Case handle: | 4 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs |
| Transport aid: | 4 x castors with 2 locking brakes |
| Use of brands: | PENN Hardware |
| Material: | Birch multiplex, 9 mm |
| Color: | Black, laminated |
| Device compartment: | 12 cm x 50 cm x 26 cm |
| Accessory compartment: | 9 cm x 52 cm x 28 cm |
| Dimensions: | Width: 89 cm Depth: 56 cm Height: 47 cm |
| Weight: | 18,65 kg |
