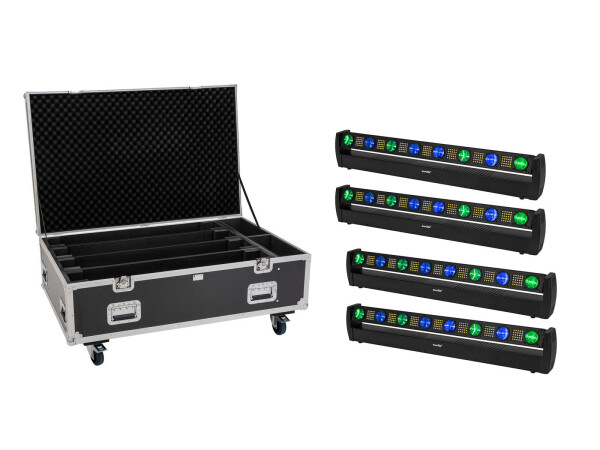

Artikelinfos im DetailEUROLITE LED BAR-8 SWING QCL bar
Tiltable LED light effect bar with 8 beams and strobe effect
- Vertical inclination angle adjustable
- Dimmer electronic; color fade; color change; color blend adjustable; color selection
- Strobe effect; uplight effect; multi beam effect
- 5 integrated show programs
- Direct color selection for 18 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; IR remote control; DMX; QuickDMX via USB (optional); master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone
- Preprogrammed in Colorchief; Light Captain
- Flicker-free
- With mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; party room; restaurants, bars and hotels
- Very quiet working noise
- Application possibility: Standing; suspended
spotlight
- 8 powerful LEDs 8 W high-power 4in1 QCL RGBW
8 segments controlled separately - With a beam angle of 1°
strobes
- 175 powerful LEDs 0.2 W SMD 5050 cold white (CW)
7 segments controlled separately - With a beam angle of 120°
ROADINGER Flightcase PRO 4x LED BAR-8 SWING with wheels
Trunk case with castors, PRO version
- With 2 accessory compartment
- 8 hinged, chromium plated case handles
- Branded hardware
- 2 high-quality butterfly locks with shut-off function
- 4 x castors with 2 locking brakes
- With 4 device compartment
- High-quality workmanship with plywood multi-layer glued 9.5 mm, black
- Aluminum profile frames 30mm with rounded edges
- 3 chrome tip-over locks
Scope of delivery
4 x EUROLITE LED BAR-8 SWING QCL bar
- 1 x light effect
- 1 x mounting bracket
- 1 x user manual
- 1 x power cord
- 1 x remote control
- 1 x battery
| Weight: | 83.05 kg |
| EUROLITE LED BAR-8 SWING QCL bar | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 80 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 1 A fuse replaceable |
| Max. TILT movement: | 215° positioning |
| Flash rate: | 0.35 - 20 Hz |
| DMX channels: | 8; 12; 23; 27; 49 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; IR remote control; DMX; QuickDMX via USB (optional); master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone |
| Preprogrammed in: | Colorchief; Light Captain |
| Projection: | Flicker-free |
| PWM frequency: | 7800 Hz |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 8183 lx, 3m: 1527 lx, 6m: 372 lx Cold white (CW) 1m: 66 lx, 3m: 9 lx, 6m: 2 lx |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| USB port: | Type A |
| Material: | Plastic; metal |
| Dimensions: | Length: 100.0 cm Depth: 10.7 cm Height: 25.1 cm |
| Weight: | 7.30 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Photobiological safety: | Risk Group 0 |
| Strobes | |
| LED type: | 175 x 0.2 W SMD 5050 cold white (CW) |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Spotlight | |
| LED type: | 8 x 8 W high-power 4in1 QCL RGBW |
| Beam angle: | 1° |
| Beam angle (1/2 peak): | 1° multicolor |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø11mm; 2 x Ø5mm |
| Material: | Metal, 3 mm |
| Color: | Black |
| Dimensions: | Length: 27.5 cm Width: 5.3 cm Height: 8 cm |
| Weight: | 0.39 kg |
| Power cord | |
| Cable construction: | 3 x 1.0 mm² H05VV-F |
| Cable length: | Approx. 1.2 m |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase PRO 4x LED BAR-8 SWING with wheels | |
| Maximum load: | 50 kg |
| Aluminum profile frames: | 30 mm |
| Case handle: | 8 pc/pcs |
| Stop hinge: | 3 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs with shut-off function |
| Transport aid: | 4 x castors with 2 locking brakes |
| Material: | Plywood multi-layer glued, 9.5 mm, laminated |
| Color: | Black |
| Accessory compartment: | 13.5 cm x 35 cm x 10 cm |
| Inside dimensions: | 122.5 cm x 77 cm x 27.5 cm |
| Dimensions: | Length: 123.7 cm Depth: 78.3 cm Height: 38.6 cm |
| Weight: | 47.15 kg |
Caractéristiques techniques
| Weight: | 83.05 kg |
| EUROLITE LED BAR-8 SWING QCL bar | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 80 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 1 A fuse replaceable |
| Max. TILT movement: | 215° positioning |
| Flash rate: | 0.35 - 20 Hz |
| DMX channels: | 8; 12; 23; 27; 49 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; IR remote control; DMX; QuickDMX via USB (optional); master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone |
| Preprogrammed in: | Colorchief; Light Captain |
| Projection: | Flicker-free |
| PWM frequency: | 7800 Hz |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 8183 lx, 3m: 1527 lx, 6m: 372 lx Cold white (CW) 1m: 66 lx, 3m: 9 lx, 6m: 2 lx |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| USB port: | Type A |
| Material: | Plastic; metal |
| Dimensions: | Length: 100.0 cm Depth: 10.7 cm Height: 25.1 cm |
| Weight: | 7.30 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Photobiological safety: | Risk Group 0 |
| Strobes | |
| LED type: | 175 x 0.2 W SMD 5050 cold white (CW) |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Spotlight | |
| LED type: | 8 x 8 W high-power 4in1 QCL RGBW |
| Beam angle: | 1° |
| Beam angle (1/2 peak): | 1° multicolor |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø11mm; 2 x Ø5mm |
| Material: | Metal, 3 mm |
| Color: | Black |
| Dimensions: | Length: 27.5 cm Width: 5.3 cm Height: 8 cm |
| Weight: | 0.39 kg |
| Power cord | |
| Cable construction: | 3 x 1.0 mm² H05VV-F |
| Cable length: | Approx. 1.2 m |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase PRO 4x LED BAR-8 SWING with wheels | |
| Maximum load: | 50 kg |
| Aluminum profile frames: | 30 mm |
| Case handle: | 8 pc/pcs |
| Stop hinge: | 3 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs with shut-off function |
| Transport aid: | 4 x castors with 2 locking brakes |
| Material: | Plywood multi-layer glued, 9.5 mm, laminated |
| Color: | Black |
| Accessory compartment: | 13.5 cm x 35 cm x 10 cm |
| Inside dimensions: | 122.5 cm x 77 cm x 27.5 cm |
| Dimensions: | Length: 123.7 cm Depth: 78.3 cm Height: 38.6 cm |
| Weight: | 47.15 kg |
