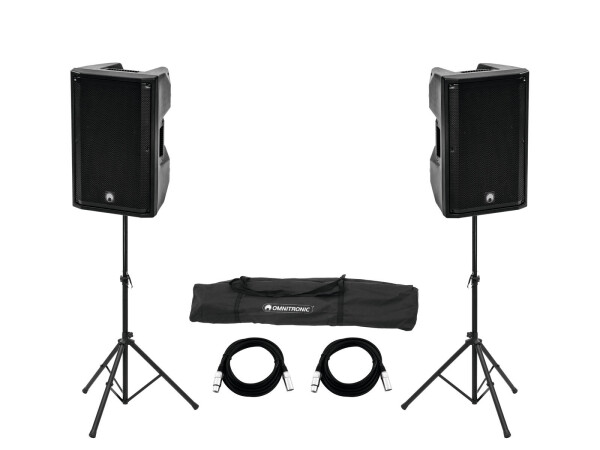

Artikelinfos im DetailActive speaker set with 2x XKB-215A, 2x high-quality stands including bag, 2x XLR cable
OMNITRONIC XKB-215A 2-Way Speaker, active, DSP
Active speaker with 15" woofer, 1,75" driver, HF: 60 W RMS, LF: 300 W RMS
- Active 15/2 full range system for mobile live and DJ applications
- DSP-controlled biamp amplifier (LF class D, HF class A/B)
- 24-bit DSP with adjustable high-pass filter, parametric 3-band EQ and signal delay
- Built-in Bluetooth player for audio streaming from compatible Bluetooth devices such as smartphones, tablets and notebooks
- 2-way bass-reflex enclosure with 38 cm woofer and 4 cm titanium driver
- 2 mic/line inputs (XLR/6.3 mm jack) with separate level controls
- Control via Bluetooth
- LCD display
- Black metal grille with acoustic foam
- 3 Rugged carrying handles
- Application possibility: Standing; monitoring; on stand
- Digital signal processor
- DSP presets: LIVE; MUSIC; SPEECH; DJ; TRIPOD; MONITOR; WALL
- For application areas such as: Mobile use; Rental; sports centres/gyms; mobile djs / entertainer
Package contents
- 1 x top, 1 x user manual, 1 x power cord, 1 x declaration of conformity
OMNITRONIC Speaker Stand MOVE MK2 set
2 speaker stands, extendible up to 183 cm, maximum load 30 kg + carrying bag
- Height adjustable, with locking pin
- Tube diameter: Ø 35 mm
- Adjustable height
Package contents
- 1 x bag
OMNITRONIC XLR cable 3pin 10m bk
Audio cable with 3-pin XLR connectors
Package contents
- 1 x xLR cable
| OMNITRONIC XKB-215A 2-Way Speaker, active, DSP | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 800 W |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power: | Program: 600W Rated: 60W RMS HF Rated: 300W RMS LF |
| Frequency range: | 50 - 20000 Hz |
| Sensitivity: | 96 dB |
| Max. SPL: | 121 dB |
| DSP: | Digital signal processor |
| DSP presets: | LIVE; MUSIC; SPEECH; DJ; TRIPOD; MONITOR; WALL |
| Control: | Bluetooth |
| Attachment system: | Flange: Ø 35mm |
| Circuitry: | Class D Biamp |
| Display type: | LCD display |
| Control elements: | Encoder, Master control |
| Controls: | Limiter |
| Status LED: | Power, signal, limit |
| Connections: | Output: line via 1 x 3-pin XLR |
| Input channels: | 2 x mono with Mic-line switch via Combination socket (XLR/jack), channel control via Rotary dial |
| Equalizer: | Master: 1 x 3-band tone control |
| Speaker: | 1 x woofer 15" Voice coil compression tweeter highs 1,75" |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |
| Carrying handle: | 3 pc/pcs |
| Dimensions: | Width: 37 cm Depth: 45 cm Height: 70 cm |
| Weight: | 20,95 kg |
| OMNITRONIC Speaker Stand MOVE MK2 set | |
| Maximum carrying capacity: | 30 kg |
| Tube diameter sector: | 35 |
| Height: | Maximum: 183 cm Minimum: 100 cm |
| Attachment system: | Ø 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Steel; Steel |
| Color: | Black |
| Weight: | 5,10 kg |
| OMNITRONIC XLR cable 3pin 10m bk | |
| Cable construction: | Audio cable |
| Cable length: | 10 m |
| Plug A: | 1 x 3-pin XLR (M) |
| Plug B: | 1 x 3-pin XLR (F) |
| Color: | Black |
| Weight: | 460 g |
Caractéristiques techniques
| OMNITRONIC XKB-215A 2-Way Speaker, active, DSP | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 800 W |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Rated power: | 300 W RMS LF; 60 W RMS HF |
| Program power: | 600 W |
| Frequency range: | 50 - 20000 Hz |
| Sensitivity: | 96 dB |
| Max. SPL: | 121 dB |
| Control: | Bluetooth |
| Attachment system: | Ø 35mm |
| Circuitry: | Class D Biamp |
| Display type: | LCD display |
| Equalizer: | Master: 1 x 3-band tone control |
| Status LED: | Power, signal, limit |
| Connections: | Output: line via 1 x 3-pin XLR |
| Input channels: | 2 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial |
| Speaker: | 1 x woofer (15") approx. 38 cm Voice coil compression tweeter highs (1.75") approx. 4.5 cm |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |
| Dimensions: | Width: 37 cm Depth: 45 cm Height: 70 cm |
| Weight: | 20,95 kg |
| OMNITRONIC Speaker Stand MOVE MK2 set | |
| Maximum carrying capacity: | 30 kg |
| Tube diameter sector: | 35 |
| Height: | Maximum: 183 cm Minimum: 100 cm |
| Attachment system: | Ø 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Steel; Steel |
| Color: | Black |
| Weight: | 5,10 kg |
| OMNITRONIC XLR cable 3pin 10m bk | |
| Cable construction: | Audio cable |
| Cable length: | 10 m |
| Plug A: | 1 x 3-pin XLR (M) |
| Plug B: | 1 x 3-pin XLR (F) |
| Color: | Black |
| Weight: | 440 g |
