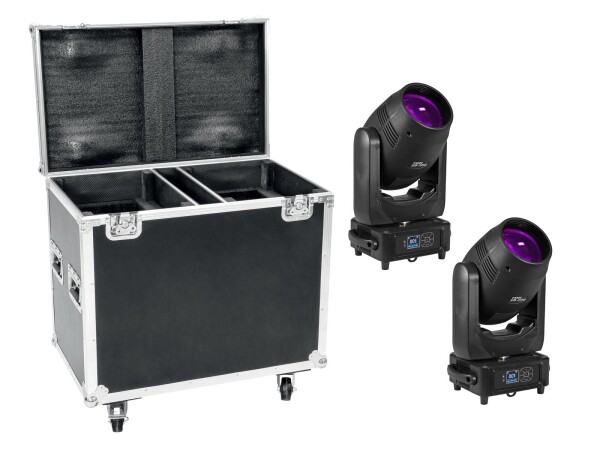

Artikelinfos im Detail2x bright, narrow beam with OSD 10 280 W discharge lamp incl. PRO flightcase with castors
- Positioning within TILT
EUROLITE TMH XB-280 Moving-Head-Beam
Bright, narrow beam with OSD 10 280W discharge lamp, color wheel, gobos and prisms
- Equipped with an OSD 10 Reflector 280W discharge lamp
- Positioning within 540° PAN, 270° TILT
- Exact positioning (16 bit resolution)
- Color wheel; Focus motor-driven; gobo wheel with static gobos; frost filter; Prism 8-fold rotating; Prism 24-fold rotating
- Color wheel with 14 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 13 gobos und open
shake effect - The device is cooled by cooling fan
- Control via DMX; stand-alone; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- With a beam angle of 2°
- Multicolor LCD display
- Dimmer electronic
- Strobe effect
- Preprogrammed in LED PC-Control 512; Light Captain
- For application areas such as: Clubs/dancing school; Stage; Rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
ROADINGER Flightcase 2x TMH-XB-280
Trunk case with castors
- For optimal security
- With 2 Device compartments
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
cover with foam padding - Aluminum profile frames 30mm with rounded edges
- 2 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks with shut-off function
- 4 castors with 2 locking brakes
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Weight: | 46,30 kg |
| EUROLITE TMH XB-280 Moving-Head-Beam | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 385 W |
| IP classification: | IP20 |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Fuse: | T 5 A Fuse replaceable |
| Lamp type: | Discharge lamp |
| Max. TILT movement: | 270° Exact positioning (16 bit resolution) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) |
| Flash rate: | 1 - 18 Hz |
| Equipment: | Color wheel; Focus motor-driven; gobo wheel with static gobos; frost filter; Prism 8-fold rotating; Prism 24-fold rotating |
| Color generation: | Color wheel with 14 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 13 gobos und open Shake effect |
| DMX channels: | 16; 19 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | LED PC-Control 512; Light Captain |
| Beam angle: | 2° |
| Beam angle (1/2 peak): | 2° |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 30,0 cm Depth: 20,5 cm Height: 50,5 cm |
| Weight: | 14,80 kg |
| Noise classification: | Class 4 (loud noises) |
| ROADINGER Flightcase 2x TMH-XB-280 | |
| Maximum load: | 50 kg |
| Aluminum profile frames: | 30 mm |
| Case handle: | 2 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs with shut-off function |
| Transport aid: | 4 x castors with 2 locking brakes |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated |
| Device compartment: | 22 cm x 32 cm x 50 cm |
| Accessory compartment: | 7 cm x 32 cm x 22 cm |
| Inside dimensions: | 53 cm x 32 cm x 50 cm |
| Dimensions: | Width: 58 cm Depth: 37 cm Height: 67 cm |
| Weight: | 16,70 kg |
Caractéristiques techniques
| Weight: | 46,30 kg |
| EUROLITE TMH XB-280 Moving-Head-Beam | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 385 W |
| IP classification: | IP20 |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Fuse: | T 5 A Fuse replaceable |
| Lamp type: | Discharge lamp |
| Max. TILT movement: | 270° Exact positioning (16 bit resolution) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) |
| Flash rate: | 1 - 18 Hz |
| Equipment: | Color wheel; Focus motor-driven; gobo wheel with static gobos; frost filter; Prism rotating |
| Color generation: | Color wheel with 14 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 13 gobos und open Shake effect |
| DMX channels: | 16; 19 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; Master/slave function; Sound to light via Microphone; LED PC-Control 512; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain |
| Beam angle: | 2° |
| Beam angle (1/2 peak): | 2° |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 30,0 cm Depth: 20,5 cm Height: 50,5 cm |
| Weight: | 14,80 kg |
| Noise classification: | Class 4 (loud noises) |
| ROADINGER Flightcase 2x TMH-XB-280 | |
| Maximum load: | 50 kg |
| Aluminum profile frames: | 30 mm |
| Case handles: | 2 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs with shut-off function |
| Transport aid: | 4 x castors with 2 locking brakes |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated |
| Device compartment: | 22 cm x 32 cm x 50 cm |
| Accessory compartment: | 7 cm x 32 cm x 22 cm |
| Inside dimensions: | 53 cm x 32 cm x 50 cm |
| Dimensions: | Width: 58 cm Depth: 37 cm Height: 67 cm |
| Weight: | 16,70 kg |
