Description
Caractéristiques techniques
Variations
Alle Variationen zu diesem ArtikelDescription

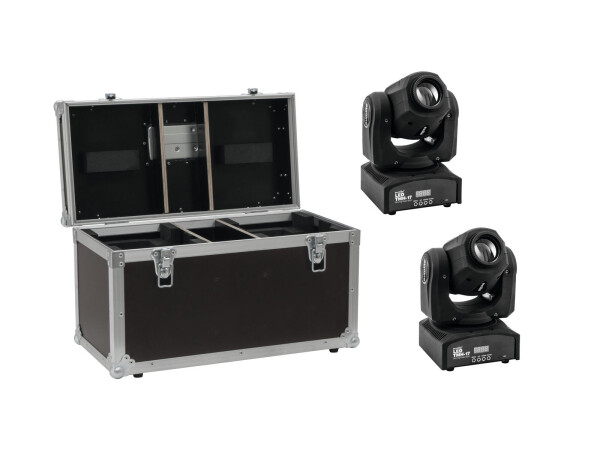

Artikelinfos im Detail2x handy-size spotlight with 30 W LED, gobos and color wheel including PRO flightcase
- Positioning within TILT
EUROLITE LED TMH-17 Moving Head Spot
Compact Moving Head Spot with 30 W LED, gobos and color wheel
- Compact lightweight
- 1 powerful LED 30 W COB (chip-on-board) color wheel
- Positioning within 540° PAN, 200° TILT
- Exact positioning (16 bit resolution)
- Gobo wheel with static gobos; Focus manual
- Gobo effect; beam effect; Strobe effect
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 7 gobos and open
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Sound to light via Microphone
- With a beam angle of 12°
- 4 digit 7-segment LED display
- Dimmer electronic
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
- For application areas such as: Clubs/dancing school; Party room; mobile djs / entertainer; small rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 2 x screw, 4 x washer, 1 x safety eyelet
ROADINGER Flightcase 2x LED TMH-17
Trunk case, PRO version
- With accessory compartment
- With 2 Device compartments
- High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
- Interior with foam padding
- Aluminum profile frames 25mm with rounded edges
- Hinged, chromium plated case handle
- 2 chrome tip-over locks
- 2 high-quality spring locks
- Branded hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Weight: | 11,50 kg |
| EUROLITE LED TMH-17 Moving Head Spot | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Lamp type: | LED lamp |
| LED: | 1 x 30 W COB (chip-on-board) color wheel |
| Max. TILT movement: | 200° Exact positioning (16 bit resolution) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) |
| Equipment: | Gobo wheel with static gobos; Focus manual |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open |
| DMX channels: | 9; 11 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Sound to light via Microphone |
| Preprogrammed in: | LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 12° |
| Beam angle (1/2 peak): | 12° |
| Illuminance in Lux (lx): | Cold white (CW) 3m: 1677 lx, 6m: 417 lx |
| Housing color: | Black |
| Display type: | 4 digit 7-segment LED display |
| Dimensions: | Width: 17 cm Depth: 14,5 cm Height: 24 cm |
| Weight: | 2,70 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 2x LED TMH-17 | |
| Maximum load: | 25 kg |
| Aluminum profile frames: | 25 mm |
| Case handle: | 1 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Spring lock: 2 pc/pcs |
| Use of brands: | Branded hardware |
| Material: | Birch multiplex, 7 mm |
| Color: | Dark brown, laminated |
| Accessory compartment: | 9 cm x 22,5 cm x 22 cm |
| Compartment dimensions: | 19 cm x 22,5 cm x 21,5 cm |
| Inside dimensions: | 22,5 cm x 21,5 cm |
| Dimensions: | Width: 51,5 cm Depth: 25,5 cm Height: 31 cm |
| Weight: | 6,10 kg |
Caractéristiques techniques
| Weight: | 11,50 kg |
| EUROLITE LED TMH-17 Moving Head Spot | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Lamp type: | LED lamp |
| LED: | 1 x 30 W COB (chip-on-board) color wheel |
| Max. TILT movement: | 200° Exact positioning (16 bit resolution) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) |
| Equipment: | Gobo wheel with static gobos; Focus manual |
| Color generation: | Color wheel with 7 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open |
| DMX channels: | 9; 11 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Sound to light via Microphone; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 12° |
| Beam angle (1/2 peak): | 12° |
| Illuminance in Lux (lx): | Cold white (CW) 3m: 1677 lx, 6m: 417 lx |
| Housing color: | Black |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Width: 17 cm Depth: 14,5 cm Height: 24 cm |
| Weight: | 2,70 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 2x LED TMH-17 | |
| Maximum load: | 25 kg |
| Aluminum profile frames: | 25 mm |
| Case handles: | 1 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Spring lock: 2 pc/pcs |
| Material: | Birch multiplex, 7 mm |
| Color: | Dark brown, laminated |
| Accessory compartment: | 9 cm x 22,5 cm x 22 cm |
| Compartment dimensions: | 19 cm x 22,5 cm x 21,5 cm |
| Inside dimensions: | 22,5 cm x 21,5 cm |
| Dimensions: | Width: 51,5 cm Depth: 25,5 cm Height: 31 cm |
| Weight: | 6,10 kg |
