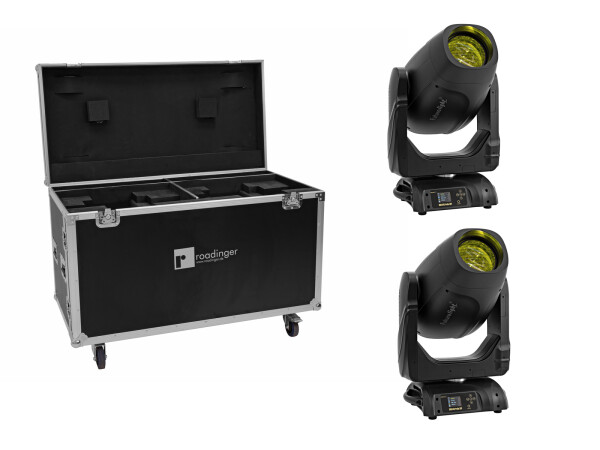

Artikelinfos im DetailFUTURELIGHT DMH-640 Profile CMY Moving Head Spot
Profile moving head with 640 W COB LED, motorized shutter blades, large zoom, CMY+CTO color mixing and animation wheel
- 1 powerful LED 640 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN, 260° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Exact 16 bit resolution at Dimmer, zoom, focus, gobo rotation
- Prism 4-fold rotating; iris; frost filter linear; zoom motor driven; focus motor-driven; animation wheel; shutter blades motor-driven
- Pulse-width modulation variable
- CMY+CTO color mixing for indefinite color variations
- Color wheel with 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobo indexable
- Slot-in gobo system for easy gobo replacement
- Gobo wheel with static gobos, 8 gobos and open
shake effect - The device is cooled by temperature-controlled fan at the Head; temperature-controlled fan at the base
- Control via stand-alone; master/slave function; DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); CRMX by LumenRadio upgradeable; W-DMX by wireless solution via USB (optional)
- Flicker-free
- With a beam angle of 10° - 47°
- Good color rendering index (CRI)
- With omega bracket
- Multicolor LCD display,
with battery buffering for easy controlling upgradeable - For application areas such as: Wedding/gala/events; Stage; theater; Rental
- Very quiet working noise
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 1 x XLR cable
ROADINGER Flightcase 2x DMH-640 with wheels
Trunk case with castors
- 4 castors with 2 locking brakes
- With 2 Device compartments
- With 2 accessory compartments
- High-quality workmanship with plywood multi-layer glued 10 mm, black, laminated
- Interior with foam padding
cover with foam padding - Aluminum profile frames 35mm with rounded edges
- 4 hinged, chromium plated case handles
- 4 chrome tip-over locks
- 6 high-quality butterfly locks
- 4 built-in stacking trays in the cover
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Weight: | 140,70 kg |
| FUTURELIGHT DMH-640 Profile CMY Moving Head Spot | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 750 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Device fuse: | 6.3 x 32 mm, 5 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 640 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 260° Exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 1 - 16 Hz |
| Equipment: | Prism 4-fold rotating; iris; frost filter linear; zoom motor driven; focus motor-driven; animation wheel; shutter blades motor-driven |
| Color generation: | CMY+CTO color mixing for indefinite color variations |
| Color generation: | Color wheel with 8 dichroic filters plus open Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 30mm Image diameter 22mm Shake effect Gobo indexable Slot-in gobo system for easy gobo replacement Gobo wheel with static gobos, 8 gobos and open Shake effect |
| DMX channels: | 33; 35; 39 |
| DMX input: | 5-pin XLR (M) mounting version IP 3-pin XLR (M) mounting version IP |
| DMX output: | 5-pin XLR (F) mounting version IP 3-pin XLR (F) mounting version IP |
| Cooling: | 4 x temperature-controlled fan at the Head 2 x temperature-controlled fan at the base |
| Control: | Stand-alone; master/slave function; DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); CRMX by LumenRadio upgradeable; W-DMX by wireless solution via USB (optional) |
| Projection: | Flicker-free |
| Beam angle: | 10° - 47° |
| Beam angle (1/2 peak): | 10 - 47° |
| Beam angle (1/10 peak): | 10 - 47° |
| Color rendering index (CRI): | 85 Ra via filter |
| Illuminance in Lux (lx): | Narrow cold white (CW) 3m: 69565 lx, 6m: 19180 lx Wide cold white (CW) 1m: 27924 lx, 3m: 3489 lx, 6m: 1000 lx |
| Housing color: | Black |
| Attachment system: | 2x omega bracket |
| Display type: | Multicolor LCD display battery buffering upgradeable |
| Dimensions: | Width: 44,2 cm Depth: 30,1 cm Height: 75,3 cm |
| Weight: | 37,15 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 2x DMH-640 with wheels | |
| Maximum load: | 100 kg |
| Aluminum profile frames: | 35 mm |
| Case handle: | 4 pc/pcs |
| Stop hinge: | 4 pc/pcs |
| Lock: | Butterfly lock: 6 pc/pcs |
| Transport aid: | 4 x castors with 2 locking brakes 4 x built-in stacking trays in the cover |
| Material: | Plywood multi-layer glued, 10 mm, laminated |
| Color: | Black, laminated |
| Device compartment: | 57 cm x 45 cm x 58 cm |
| Accessory compartment: | 57 cm x 9 cm x 25 cm |
| Dimensions: | Width: 1,23 cm Depth: 62 cm Height: 85 cm |
| Weight: | 58,35 kg |
