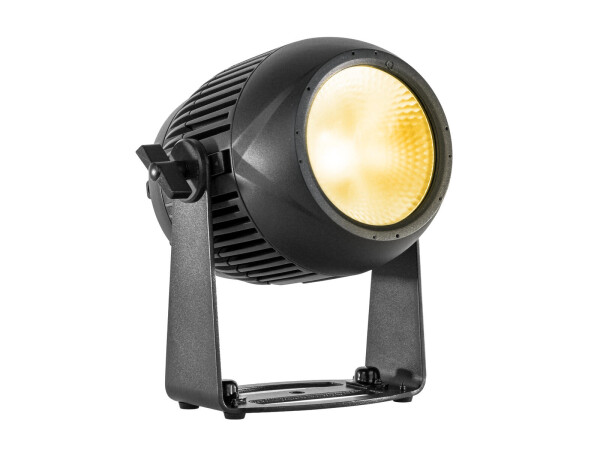

Artikelinfos im DetailWeather-proof (IP65) blinder with 324W LED and excellent tungsten simulation
- 1 powerful LED 324 W COB (chip-on-board) (homogenous color mix)
- Dimmer electronic; dimmer curves adjustable; Dimmer speed (step response) adjustable; pulse-width modulation adjustable; Dim to warm
- Blinder effect; strobe effect
- 3 integrated show programs
- Control via DMX; RDM; stand-alone; master/slave function
- RDM For bidirectional communication over the DMX line
- DMX fail mode (hold; blackout)
- With a beam angle of 73°
- Good color rendering index (CRI)
- Flicker-free
- With omega bracket
- Multicolor LCD display
- The device is cooled by temperature-controlled fan
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- Suitable for outdoor use IP65
- With pressure compensation membrane
- For application areas such as: Stage; clubs/dancing school; wedding/gala/events; rental; theater
- Application possibility: Standing; suspended; on stand
- Silent operation
- Dimmable
screw
- With mounting bracket
Scope of delivery
- 1 x spotlight
- 1 x user manual
- 1 x power cord
- 1 x omega bracket
- 1 x mounting bracket
- 2 x screw
- 2 x washer
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 180 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Cable construction: | 3 x 2.5 mm² H07RN-F |
| Power output: | IP T-Con (F) mounting version |
| Lamp type: | LED lamp |
| Lamp specification: | Dimmable |
| LED type: | 1 x 324 W COB (chip-on-board) (homogenous color mix) |
| Flash rate: | 1 - 14 Hz |
| DMX channels: | 1; 4; 4; 8; 10; 12 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | 1 x temperature-controlled fan |
| Control: | DMX; RDM; stand-alone; master/slave function |
| Projection: | Flicker-free |
| DMX features: | RDM For bidirectional communication over the DMX line |
| DMX fail mode: | Hold; blackout |
| Beam angle: | 73° |
| Beam angle (1/2 peak): | 73° |
| Beam angle (1/10 peak): | 99° |
| Color temperature: | 2700K |
| Color rendering index (CRI): | 81 Ra |
| Luminous flux maintenance: | 6.7 |
| Housing color: | Black |
| Attachment system: | Omega bracket |
| Display type: | Multicolor LCD display |
| Diameter mounting holes: | Ø11mm |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Aluminum casting |
| Dimensions: | Length: 22.3 cm Width: 25.5 cm Height: 28.7 cm |
| Weight: | 5.43 kg |
| Noise classification: | Class 0 (no noise at all) depending on mode used |
| Screw | |
| Attachment system: | Mounting bracket |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Caractéristiques techniques
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 180 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Cable construction: | 3 x 2.5 mm² H07RN-F |
| Power output: | IP T-Con (F) mounting version |
| Lamp type: | LED lamp |
| Lamp specification: | Dimmable |
| LED type: | 1 x 324 W COB (chip-on-board) (homogenous color mix) |
| Flash rate: | 1 - 14 Hz |
| DMX channels: | 1; 4; 4; 8; 10; 12 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | 1 x temperature-controlled fan |
| Control: | DMX; RDM; stand-alone; master/slave function |
| Projection: | Flicker-free |
| DMX features: | RDM For bidirectional communication over the DMX line |
| DMX fail mode: | Hold; blackout |
| Beam angle: | 73° |
| Beam angle (1/2 peak): | 73° |
| Beam angle (1/10 peak): | 99° |
| Color temperature: | 2700K |
| Color rendering index (CRI): | 81 Ra |
| Luminous flux maintenance: | 6.7 |
| Housing color: | Black |
| Attachment system: | Omega bracket |
| Display type: | Multicolor LCD display |
| Diameter mounting holes: | Ø11mm |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Aluminum casting |
| Dimensions: | Length: 22.3 cm Width: 25.5 cm Height: 28.7 cm |
| Weight: | 5.43 kg |
| Noise classification: | Class 0 (no noise at all) depending on mode used |
| Screw | |
| Attachment system: | Mounting bracket |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
