All variations to this product.Description

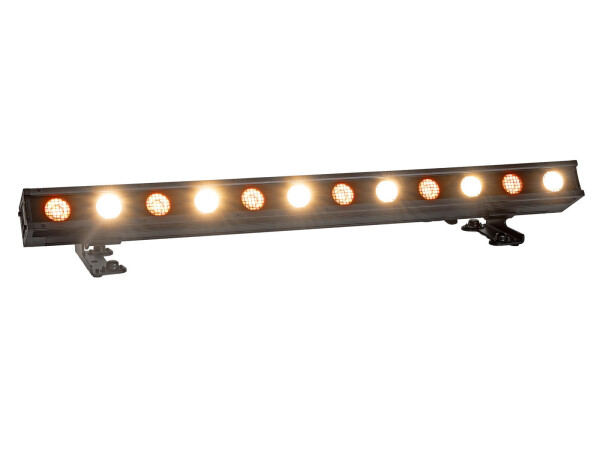

Productinformation in detailWeather-proof (IP65) bar with twelve 30W LED units and excellent tungsten simulation
- Blinder effect
- Control via stand-alone; DMX; RDM; master/slave function
- 5 integrated show programs
- DMX fail mode (hold; blackout)
- Dimmer electronic; dimmer curves adjustable; Dimmer speed (step response) adjustable; pulse-width modulation adjustable; Dim to warm
- 36 powerful LEDs 10 W warm white (WW)
12 segments controlled separately - 48 powerful LEDs 0.6 W red (R)
12 segments controlled separately - 48 powerful LEDs 1 W amber (A)
12 segments controlled separately - RDM For bidirectional communication over the DMX line
- With panning and tilting mounting bracket for ceiling or wall installation in most varying angles; with omega bracket
- Multicolor LCD display
- The device is cooled by passive convection cooling
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- Suitable for outdoor use IP65
- With pressure compensation membrane
- For application areas such as: Stage; clubs/dancing school; wedding/gala/events; restaurants, bars and hotels; theater
- Application possibility: Standing; suspended
- Very quiet working noise
- Flicker-free
Scope of delivery
- 1 x spotlight
- 1 x user manual
- 1 x power cord
- 2 x omega bracket
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 230 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Cable construction: | 3 x 2.5 mm² H07RN-F |
| Power output: | IP T-Con (F) mounting version |
| Lamp type: | LED lamp |
| LED type: | 36 x 10 W warm white (WW) 48 x 0.6 W red (R) 48 x 1 W amber (A) |
| Flash rate: | 1 - 33 Hz |
| DMX channels: | 1; 4; 6; 12; 16; 21; 24; 34 |
| DMX input: | 3-pin XLR (M) mounting version IP 5-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP 5-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; RDM; master/slave function |
| Projection: | Flicker-free |
| DMX features: | RDM For bidirectional communication over the DMX line |
| DMX fail mode: | Hold; blackout |
| Housing color: | Black |
| Attachment system: | 2x panning and tilting mounting bracket for ceiling or wall installation in most varying angles 2x omega bracket |
| Display type: | Multicolor LCD display |
| Diameter mounting holes: | 2 x Ø12mm |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Aluminum casting |
| Dimensions: | Length: 100.5 cm Width: 14.0 cm Height: 14.7 cm |
| Weight: | 8.25 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Technical data
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 230 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Cable construction: | 3 x 2.5 mm² H07RN-F |
| Power output: | IP T-Con (F) mounting version |
| Lamp type: | LED lamp |
| LED type: | 36 x 10 W warm white (WW) 48 x 0.6 W red (R) 48 x 1 W amber (A) |
| Flash rate: | 1 - 33 Hz |
| DMX channels: | 1; 4; 6; 12; 16; 21; 24; 34 |
| DMX input: | 3-pin XLR (M) mounting version IP 5-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP 5-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; RDM; master/slave function |
| Projection: | Flicker-free |
| DMX features: | RDM For bidirectional communication over the DMX line |
| DMX fail mode: | Hold; blackout |
| Housing color: | Black |
| Attachment system: | 2x panning and tilting mounting bracket for ceiling or wall installation in most varying angles 2x omega bracket |
| Display type: | Multicolor LCD display |
| Diameter mounting holes: | 2 x Ø12mm |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Aluminum casting |
| Dimensions: | Length: 100.5 cm Width: 14.0 cm Height: 14.7 cm |
| Weight: | 8.25 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
