All variations to this product.Description

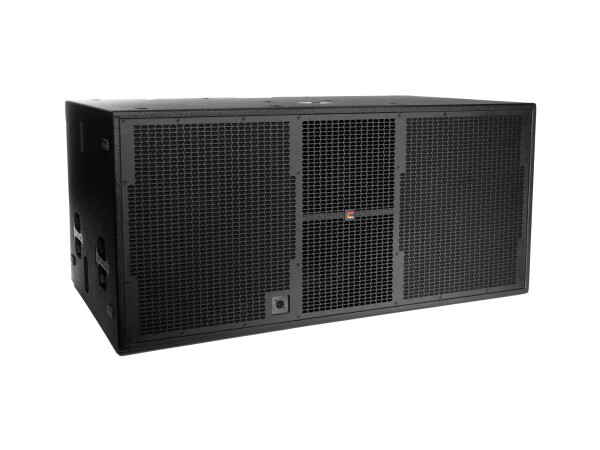

Productinformation in detailLarge-scale subwoofer, maximum SPL
- Rear-loaded transmission line subwoofer
- Down to 28Hz at -6dB and still 104dB/1W/1m efficiency
- Real 3000 W RMS power capacity
- Premium 18" LF drivers with massive ±15 mm linear Xmax
- Triple-forced cooling system for low power compression
- Heavy braced cabinet for vibration free dynamic response
- For application areas such as: Theater; sports centres/gyms; Clubs/dancing school
- CELTO ACOUSTIQUE driver
- Built with NEUTRIK connector
- Rubberized Polyurea coating
Package contents
- 1 x bass
| Power: | Rated: 3000W AES Program: 6000W Peak: 12000W |
| Frequency range: | 26 - 900 Hz |
| Sensitivity: | 104 dB (1W/1m) |
| Max. SPL: | 145 dB |
| Dispersion angle: | Omnidirectional |
| Impedance: | 4 ohms |
| Attachment system: | Flange: 2x M20 thread |
| Connections: | Input: speaker via 3 x speaker built-in socket (F) |
| Crossover frequency: | Recommended High-pass 28 Hz, 24db/oct Low-pass 80-110 Hz |
| Speaker: | 2 x woofer 18" with ferrit magnet Basket material: aluminum Voice coil lows 4" |
| Type of speaker: | Subwoofer |
| Type of construction: | Transmission line |
| Use of brands: | CELTO ACOUSTIQUE driver Built with NEUTRIK connector |
| Material: | Baltic birch plywood, 18 mm, CNC made with tongue and grove assembly |
| Color: | Black, rubberized Polyurea coating, painted |
| Dimensions: | Width: 1,246 m Depth: 72,8 cm Height: 58,0 cm |
| Weight: | 111,00 kg |
Technical data
| Power: | Peak: 12000W Program: 6000W Rated: 3000W AES |
| Frequency range: | 26 - 900 Hz |
| Sensitivity: | 104 dB (1W/1m) |
| Max. SPL: | 145 dB |
| Dispersion angle: | Omnidirectional |
| Impedance: | 4 ohms |
| Attachment system: | Flange: 2x M20 thread |
| Connections: | Input: speaker via 3 x 4-pol SpeakON mounting version (F) |
| Crossover frequency: | Recommended High-pass 28 Hz, 24db/oct Low-pass 80-110 Hz |
| Speaker: | 2 x woofer 18" with ferrit magnet Basket material: aluminum Voice coil woofer in/out wound 4" |
| Type of speaker: | Subwoofer |
| Type of construction: | Transmission line |
| Use of brands: | CELTO ACOUSTIQUE driver Built with NEUTRIK connector |
| Material: | Baltic birch plywood, 18 mm, CNC made with tongue and grove assembly |
| Color: | Black, rubberized Polyurea coating, painted |
| Dimensions: | Width: 124,6 cm Depth: 72,8 cm Height: 58,0 cm |
| Weight: | 111,00 kg |
