Description
Variations
Alle Variationen zu diesem ArtikelDescription

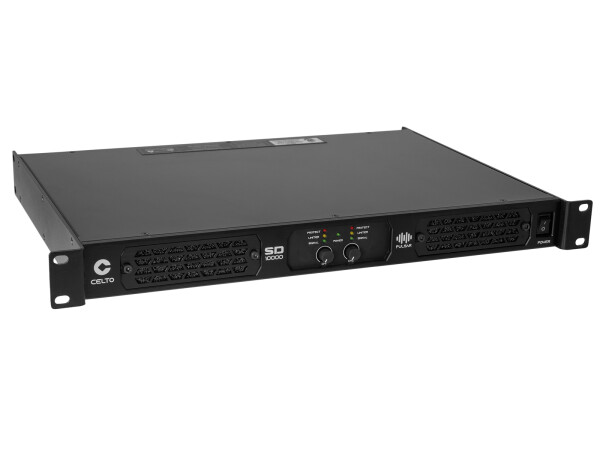

Artikelinfos im DetailClass D multi-channel PA amplifier with SMPS, 2 x 2800 W RMS (8 ohms), 2 x 5000 W RMS (4 ohms)
- (19") 48.3 cm rack installation 1 U
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
- Built with NEUTRIK connector
Package contents
- 1 x amplifier, 1 x power cord, 4 x foot
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Output power: | 2 x 2800 W RMS (8 ohms); 2 x 5000 W RMS (4 ohms); 2 x 5300 W RMS (2 ohms) |
| Power connection: | Mains input via PowerCON (blue), mounting version |
| Cable construction: | 3 x 3 mm² |
| Cable length: | 1,5 m detachable |
| Frequency range: | 6 - 20000 Hz |
| S/N ratio: | >107 dB |
| THD: | <0,05 % at 1 kHz |
| Cooling: | 4 x temperature-controlled fan , air flow from front to rear |
| Impedance: | Input: 20 kOhm , bal. |
| Gain: | 34 dB |
| Housing color: | Black matte |
| Circuitry: | Class D |
| Slew rate: | >60 V/µs |
| Damping factor: | >800 |
| Control elements: | Power switch, mode switch (stereo/parallel/bridged), level control per channel |
| Controls: | Short-circuit; Overvoltage; current limiting; overload; overheat |
| Status LED: | Power, signal, limit, protect |
| Connections: | Input: line via 2 x 3-pin XLR Output: speaker via 2 x 4-pol SpeakON mounting version (F) |
| Input channels: | 2 x mono via XLR |
| Max. level: | Input: +20 dBu, bal. |
| Use of brands: | Built with NEUTRIK connector |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,2 cm Depth: 32,6 cm Height: 4,5 cm |
| Weight: | 8,70 kg |
