SAT WMB 10 B - Wall Mount for Speakers, Black
RRP 33.50 CHF
32.50 CHF *
deliverable
Description
Merkmale
Technical data
Similar items
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description
Productinformation in detail^

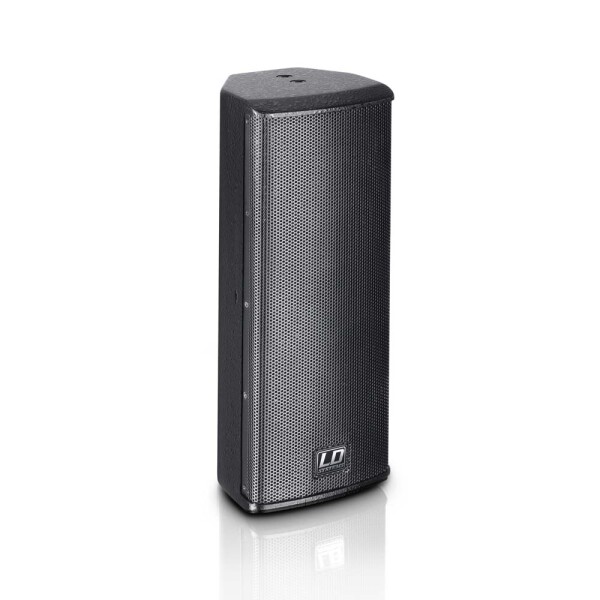

The closed design of the sleek, compact speaker is loaded with 4" custom woofers and a 1“ silk dome tweeter with wave guide, which provide for a maximum sound-level pressure of 108 dB. The LD SAT242G2 is rated for 100 W RMS power can can be used alone as a full-range speaker or with a subwoofer in the in the LD installation series for bass expansion.
The cabinet of the SAT242G2 is made of 12mm MDF with a durable textured finish and is available in black and white. It is connected via spring terminals. M6 inserts and an included mounting bracket provide numerous possibilities for mounting; a universal joint mount is available as an accessory.
Merkmale
| Item information | Value |
|---|---|
| Color: | black |
| Item weight: | 6,23 kg |
Technical data
| Product type | Installation Loudspeakers |
| Type | Wall-mounted Loudspeaker |
| Low/mid Woofer dimensions | 2 x 4 " |
| Woofer dimensions (mm) | 2 x 101 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| HF driver dimensions | 1 " |
| HF driver dimention (mm) | 25 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| Dispersion (H x V) | 60 x 60 ° |
| Load rating (RMS) | 100 W |
| Frequency response | 75 - 20000 |
| SPL (1W/1m) | 88 dB |
| Max. SPL | 108 dB |
| Impedance | 8 Ohm(s) |
| Protection circuits | HF Driver |
| Loudspeaker inputs | 1 |
| Speaker input connections | Clamp connector |
| Speakers per amplifier channel (DSP44/45K) | 4 |
| Cabinet material | 12 mm MDF |
| Cabinet surface | texture paint |
| Cabinet colour | Black |
| Cabinet construction | Closed |
| Width | 140 mm |
| Height | 378 mm |
| Depth | 135 mm |
| Weight | 4,15 kg |
