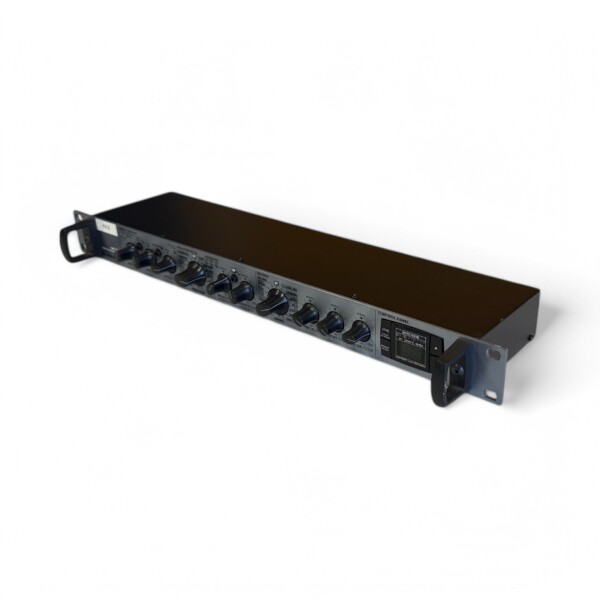

(S257) TC Electronic M350 Multi-Effects Processor

TC Electronic M350 Multi-Effects Processor

The M-350 Dual Engine Processor from T.C. Electronic combines user-friendliness with outstanding performance for studio and live applications. This rack unit features 15 novel TC-quality reverbs and a variety of effects including delay, modulation, and compression. The included AU/VST-compatible software editor allows for seamless integration and complete parameter automation within digital audio work. With 256 factory presets and 99 additional user presets, you can choose from a total of 355 presets that cover a wide range of applications. The intuitive operation through the on-site controls makes it easy to react quickly in any situation. Thanks to automatic detection of the 24-bit S/PDIF digital input and comprehensive MIDI functions, the M-350 is the perfect tool for any production.

Technical Specifications:

Digital Input and Output:

Connections: RCA (S/PDIF)
Format: S/PDIF (24 Bit, EIAJ CP-340, IEC 968)
Sample Rate: 44.1 kHz (44.1 kHz and 48 kHz at the digital input)
Processing Delay: 0.08 milliseconds at 48 kHz
Frequency Response (Digital I/O): DC to 23.9 kHz ± 0.01 dB at 48 kHz

Analog Inputs:

Connections: Symmetrical 6.3 mm jack, mono detection
Impedance: Sym. Jazzy: 21 kOhm/13 kOhm
Max. Min. Input Level: +24 dB/0 dBu
Input Sensitivity at 12 dB Headroom: -12 dBu to +12 dBu
A/D Conversion: 24 Bit, 128-fold Oversampling Bitstream
A/D Conversion Delay: 0.70 ms @ 48 kHz
Dynamic: Typ. < -92 dB, 22 Hz to 22 kHz
Total Harmonic Distortion: Typ. < -90 dB (0.0032 %) at 1 kHz, -1 dBFS
Frequency Response: Typ. < -0.1 dB, 20 Hz to 20 kHz
Clipping: Typ. < -100 dB, 20 Hz to 20 kHz

Analog Outputs:

Connections: 6.3 mm jack symmetrical
Impedance: 40 Ohm D
Max. Output Level: +14 dBu
D/A Conversion: 24 Bit, 128-fold Oversampling Bitstream
D/A Conversion Delay: 0.68 ms @ 48 kHz
Dynamic: Typ. < -105 dB, 20 Hz to 22 kHz
Total Harmonic Distortion: Typ. < -97 dB @ 20 Hz to 1 kHz, -13 dBu
Frequency Response: Typ. ±0.5 dB, 20 Hz to 20 kHz
Clipping: Typ. < -10 dB, 20 Hz to 20 kHz

EMV: Complies with EN 55103-1 and EN 55103-2
Safety: FCC Part 15 Class B, CISPR 22 Class B
Certifications: IEC 61000, EN 60065, UL60950 and CSA E60065
CSA FILE #: 180093

Environment:

Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity: Max. 90 % non-condensing

Control Connections:

MIDI: In/Out: 5 Pin DIN
Pedal: 6.3 mm jack

General:

Housing: Anodized aluminum front
Enclosure Type: Godbox/Left and Right Steel Housing
2.3 x 7 Segment LEDs
Dimensions: 483 x 43.4 x 166 mm (1.75 x 17 x 6.5")
Weight: 1.3 kg (2.9 lbs)
Power Supply: 100-240 V AC, 50 to 60 Hz
Automatic Adjustment: 15 V
