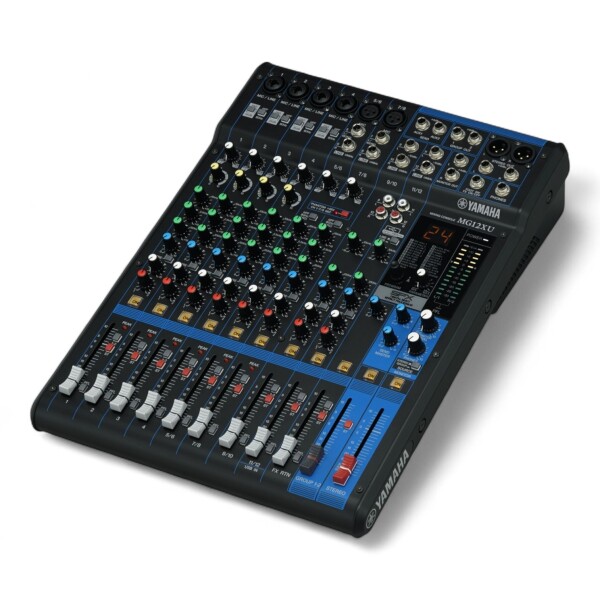

Productinformation in detailThe Yamaha MG12 XU is a compact mixing console with extensive features, ideal for live performances and recording sessions.
- 12-channel mixing console
- Max. 6 microphone / 12 line inputs (4 mono + 4 stereo)
- 2 GROUP buses + 1 Stereo Bus
- 2 AUX (including FX)
- "D-PRE" microphone preamplifier with inverted Darlington circuit
- 1-knob compressors
- SPX processor with 24 high-quality effect programs
- USB interface with 2 inputs / 2 outputs (24-bit / 192kHz)
- Compatible with the iPad (version 2 or higher) via the Apple iPad Camera Connection Kit / Lightning to USB cable
- Cubase AI DAW software download version included
- PAD switch on mono inputs
- +48V phantom power
- XLR outputs
- Metal housing
Technical data
| Simultaneously usable channels | 8 |
| Mic Inputs | 6 |
| Stereo Inputs | 4 |
| Master Output | XLR |
| Maximum number of pre-auxiliary channels | 1 |
| PC interface | USB-B |
| Multitrack recording | No |
| USB/SD direct record | No |
| PFL | Yes |
| Effect processor | 1 |
| USB play | No |
| Bluetooth play | No |
| Footswitch | Button |
| Matrix mixer | No |
| Zones | 0 |
| 19" rack mount | Optional |
| Width | 308 mm |
| Depth | 422 mm |
| Height | 118 mm |
| Weight | 4.2 kg |
| Mono line inputs | 6 |
| Hi-Z input | 0 |
| Phantom power | 48V |
| Aux paths | 2 |
| Interface input | 2 |
| Audio interface input | 2 |
| Interface output | 2 |
| Audio interface output | 2 |
| USB/SD direct record | No |
| Low cut | Yes |
| Compressor | Yes |
| Panorama | Yes |
| Lamp connector | No |
