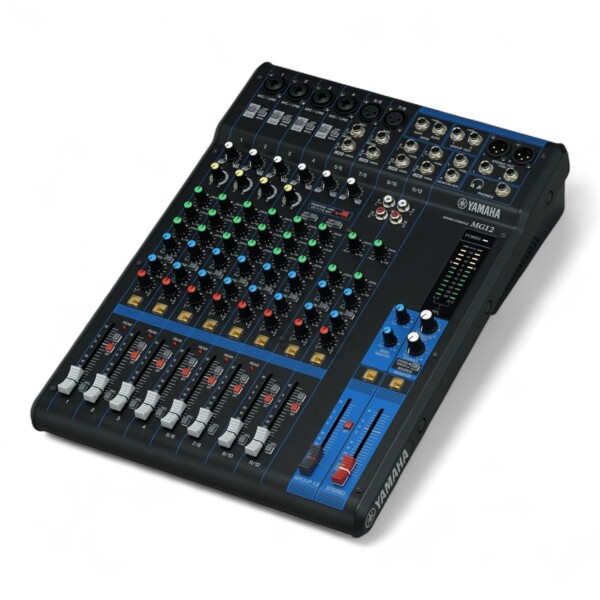

Rental: MG 12, 12-channel mixing console

SKU: C2863 Category: Mixing consoles

The Yamaha MG12 is a compact yet powerful mixer that offers professional sound and easy operation.

This item is currently not available. We are not sure whether and when this item will be available again.

RRP: ~~64.62 CHF~~

60.00 CHF

incl. 8,1% VAT , plus

Artikel mieten

Pay securely with:

The Yamaha MG12 is a compact yet powerful mixer that offers professional sound and easy operation.

12 channels
6 microphone inputs with "D-PRE" microphone preamp with inverted Darlington circuit (XLR/TRS) with +48V phantom power (channels 1-4 with built-in compressor)
3-band EQ
High-pass filter and 26 dB pad switch
4 stereo inputs (TRS) with 2-band EQ
XLR output
Group bus output
2 aux paths for all channels

Phantom Power:	+48 V
Digital Inputs and Outputs:	USB Audio Class 2.0 compatible, sampling rate: up to 192 kHz, bit depth: 24 bits
Input Channels Mono (Mic/Line):	4
Input Channels Mono/Stereo (Mic/Line):	2
Input Channels Stereo (Line):	2
Output Channels Stereo Out:	2
Output Channels Monitor Out:	1
Output Channels Headphones:	1
Output Channels AUX Send:	2
Output Channels Group Out:	2
Bus:	Stereo: 1, Group: 2, AUX: 2
PAD:	26 dB (Mono)
HPF:	80 Hz, 12 dB/octave (Mono/Stereo: only MIC)
COMP 1-Knob Compressor (Threshold, Threshold Value):	+22 dBu to -8 dBu
COMP Ratio (Ratio):	1:1 to 4:1
COMP Output Level:	0 dB to 7 dB
COMP Attack Time:	Approx. 25 ms
COMP Release Time (Decay Time):	Approx. 300 ms
EQ High:	(Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz Shelving
EQ Mid:	Gain: +15 dB/-15 dB, Frequency: 2.5 kHz Bell Filter
EQ Low:	(Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz Shelving
Peak LED:	LED turns on when the post-EQ signal reaches a value of 3 dB below the overload threshold
Level Meter:	2 x 12-segment LED display (Peak, +10, +6, 0, -6, -10, -20, -25, -30 dB)
Harmonic Distortion:	0.03% at +14 dBu, gain control: min., 0.005% at +24 dBu, gain control: min.
Frequency Response:	+0.5 dB/-1.5 dB, referenced to nominal output level
