Rental: DBR12 12" active speaker 465W RMS
RRP 70.01 CHF
65.00 CHF *
This item is currently not available. We are not sure whether and when this item will be available again.
Description
Merkmale
Bedienungsanleitung
Technical data
Similar items
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

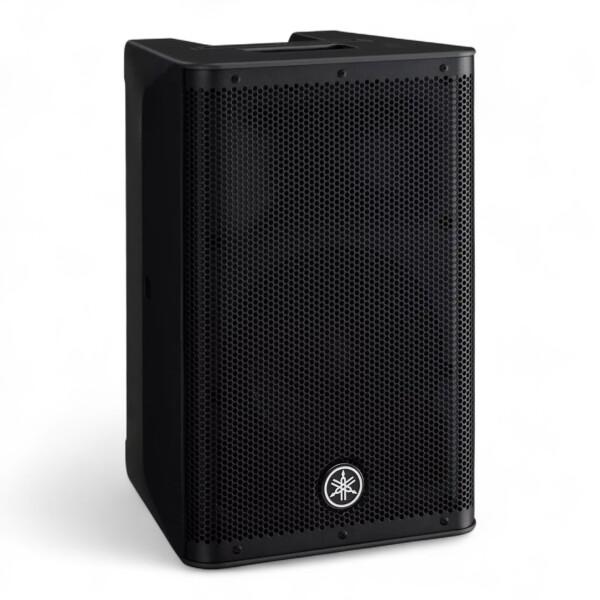

Productinformation in detailThe Yamaha DXR8 is a powerful 8" 2-way active speaker with a dynamic output power of 1100W, ideal for professional sound reinforcement.
- Speaker type: The speaker is an 8" 2-way, bi-amp powered bass-reflex type. Power: The power is 700W RMS and 1100W dynamic.
- Frequency range: It covers a wide frequency spectrum from 57 Hz to 20 kHz, meaning it can reproduce deep bass as well as crystal-clear highs.
- Dispersion angle: With a horizontal dispersion angle of 90° and a vertical angle of 60°, the speaker delivers excellent sound over a wide area.
- Operating mode: The bi-amp operation and FIR-X tuning provide outstanding sound quality with minimal distortion, making it ideal for professional applications.
- Inputs: The DXR8 is equipped with various inputs, including XLR and RCA, enhancing its flexibility in different setups.
- Portability: Weighing only 13.5 kg, the speaker is easy to transport and quick to set up.
Technical data
| Speaker Type | 8" 2-way, bi-amp powered speaker, bass-reflex type |
| Frequency Range (-10dB) | 57Hz - 20kHz |
| Nominal Coverage | H 90° V 60° |
| Components | LF: Diameter: 8" cone, Voice Coil: 2", Magnet: Ferrite / HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite |
| Crossover | FIR-X tuning (linear phase FIR filter) |
| Output Power | Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) |
| Maximum Output Level (1m; on axis) | 129dB SPL |
| I/O Connectors | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT1), LINK OUT: XLR x 1 |
| Processors | D-CONTOUR : FOH / MAIN, MONITOR, OFF |
| Power Supply | 100V - 240V, 50Hz/60Hz |
| Power Consumption | 90W |
| Hanging System and Mounting Hardware | Top x2, Rear x1 (Suitable for M8 x 15mm eyebolts) |
| Pole Socket | 35mm with 2-way functions (0 or 7 degrees) |
| Dimensions | B280mm (11") x H458mm (18") T280mm (11") |
| Net Weight | 13.5kg |
