All variations to this product.Description

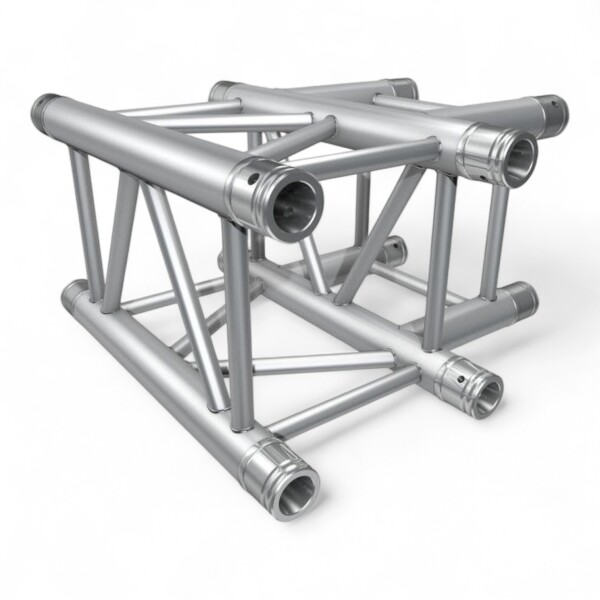

Productinformation in detailThe F34 truss system from Global Truss is a TÜV-certified 4-point system with an external dimension of 29 cm. Due to its ideal load capacity in relation to its own weight and external dimensions, this truss is one of the most popular systems on the market.
- 3-way corner
- 90° angle
- Tube diameter: 50 mm
- Wall thickness: 2 mm
Technical data
| Colour | Aluminium |
| TÜV certificate | No |
| Material | Aluminium EN AW-6082 T6 |
| Number of points | 4-point |
| Edge dimension | 29 cm |
| System | F34 |
| Type | Corner |
| Diameter main tube | 50 mm |
| Wall thickness of main pipe | 2 mm |
| Brace diameter | 20 mm |
| Brace wall thickness | 2 mm |
| Dimensions (L/W/H) | 290 x 500 x 500 mm |
| Weight | 7.80 kg |
