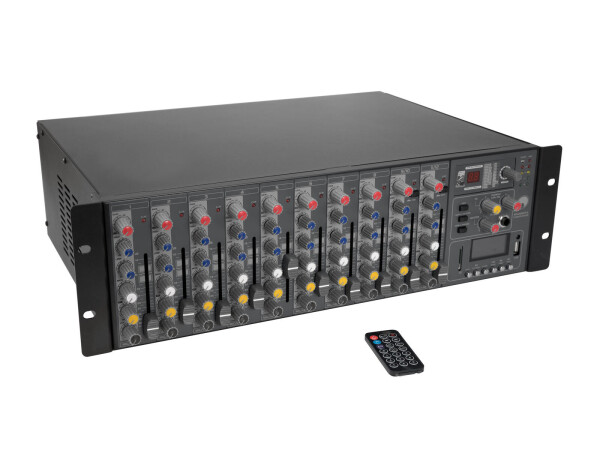

Productinformation in detail19" powered mixer, 2 x 400 W, with 12 channels, DSP FX unit and MP3 player
- Audio mixer and digital amplifier in a 19" housing
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- 6 mono input channels with gain control, 2-way EQ, pan control and channel fader
- 2 stereo input channels with 2-way EQ, balance control and channel fader
- 8 channel inserts
- Tape input and output
- Separate main mix and control room outputs
- 2 AUX send outputs
- Adjustable headphones output
- +48 V phantom power, can be switched centrally
- 4-digit stereo LED level display
- Digital signal processor 24 bit with 16 effects
- Control via IR remote control; Bluetooth
- (19") 48.3 cm rack installation 3 U
- For application areas such as: Clubs/dancing school; Stage; theater; concerts/FoH's; Rental
Package contents
- 1 x remote control, 1 x battery, 1 x user manual, 1 x power cord, 1 x mixer, 1 x declaration of conformity
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 115 W 1/8 power |
| Protection class: | Protection class I |
| Output power: | 2 x 250 W RMS (8 ohms) 2 x 400 W RMS (4 ohms) |
| Power connection: | Power supply cord with safety plug (provided) |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >89 dB |
| THD: | <0,05 % at 1 kHz |
| DSP: | Digital signal processor 24 bit with 16 effects |
| Phantom power: | Or 48 V DC |
| Control: | IR remote control; Bluetooth |
| Bluetooth device name: | Bluetooth |
| Audio player: | USB + SD + Bluetooth |
| Control elements: | Level control per channel, Master control, tone control, phantom power switch |
| Connections: | Input: Microphone via 8 x 3-pin XLR Input: line via 12 x 6.3 mm jack socket (stereo) mounting version Input: line via 1 x stereo RCA Input: AUX via 2 x 6.3 mm jack socket (stereo) mounting version Output: AUX via 2 x 6.3 mm jack socket (stereo) mounting version Output: rec. via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: speaker via 2 x speaker built-in socket (F) |
| Input channels: | 2 x stereo via Jack 8 x mono via XLR or jack |
| Equalizer: | Chanal: 2 x 2-band tone control stereo Chanal: 8 x 2-band tone control mono |
| Switch: | Gain control, panoramacontol |
| Available storage media: | USB devices/SD cards |
| USB port: | Typ A |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 3 U |
| Dimensions: | Width: 48,3 cm Depth: 34 cm Height: 13,35 cm |
| Weight: | 6,55 kg |
Technical data
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 115 W 1/8 power |
| Protection class: | Protection class I |
| Output power: | 2 x 250 W RMS (8 ohms) 2 x 400 W RMS (4 ohms) |
| Power connection: | Power supply cord with safety plug (provided) |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >89 dB |
| THD: | <0,05 % at 1 kHz |
| DSP: | Digital signal processor |
| Control: | IR remote control; Bluetooth |
| Audio player: | USB + SD + Bluetooth |
| Equalizer: | Chanal: 2 x 2-band tone control stereo Chanal: 8 x 2-band tone control mono |
| Connections: | Input: Microphone via 8 x 3-pin XLR Input: line via 12 x 6.3 mm jack socket (stereo) mounting version Input: line via 1 x stereo RCA Input: AUX via 2 x 6.3 mm jack socket (stereo) mounting version Output: AUX via 2 x 6.3 mm jack socket (stereo) mounting version Output: rec. via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: speaker via 2 x speaker built-in socket (F) |
| Input channels: | 2 x stereo via Plug 6,3mm/3,5mm (Jack) 8 x mono via XLR or jack |
| USB port: | Typ A |
| Housing design: | (19") 48.3 cm rack installation 3 U |
| Dimensions: | Width: 48,3 cm Depth: 34 cm Height: 13,35 cm |
| Weight: | 6,60 kg |
