Productinformation in detailUSB-C to studio and stage.

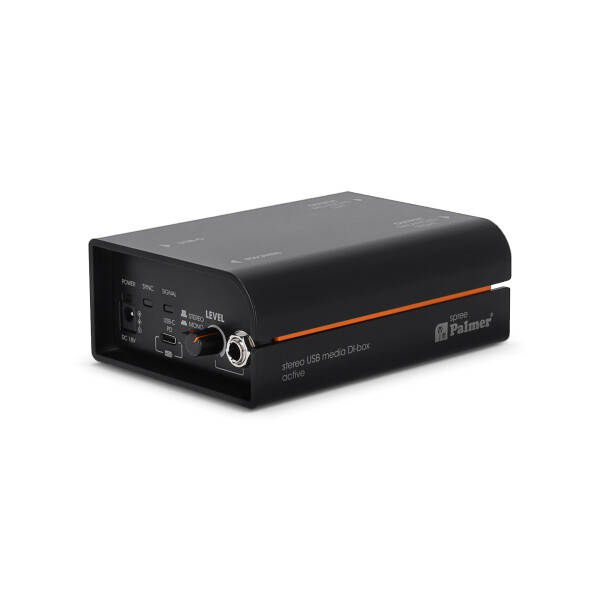

Feed audio from a laptop, smartphone or tablet directly into a mixer, stagebox or PA system. The Palmer SPREE is an active stereo USB-C media DI box designed exactly for this application.
It converts USB-C audio into two balanced XLR signals for direct integration into professional audio setups. D/A conversion with up to 32-bit / 192 kHz ensures high-resolution signal conversion, while the galvanically isolated XLR outputs help prevent hum and unwanted interference. A switchable Mic / Line output level allows easy matching to different input stages, and the ground-lift switch provides additional noise control in demanding environments. A 6.3 mm TRS headphone output allows direct monitoring or can be used as an additional signal output. Status LEDs for SIGNAL, SYNC and POWER provide quick visual confirmation during setup and operation.
The SPREE can be powered either via USB-C or via the included external power supply. When the external power supply is used, USB-C power pass-through allows the connected device to be powered at the same time. This is particularly useful for setups with smartphones or tablets.
With its robust metal housing, the Palmer SPREE is ready for touring and stage use. Engineered in Germany.
Technical data
General
| Type | Active |
| Included Accessories | Rubber feet |
| Included Accessories | Tour label |
| Included Accessories | USB cable |
| Material | Aluminium |
| Material | Steel |
| Coating | Powder coated |
| Isolated transformer | Yes |
| Transformer Ratio | 1:1 |
| Ground Lift | Yes |
| Frequency response (±0.5 dB, rel. Avg) | 20 - 20,000 Hz |
| Number of inputs | 1 |
| Number of outputs | 2 |
| Colour | Black |
| Number of channels | 2 |
Inputs
| Input signal type | USB |
| Input connector types | USB-C socket female |
Outputs
| Output signal type | Balanced |
| Output signal type | Headphone |
| Number of line outputs | 2 |
| Line outputs connector type | XLR 3-pole male |
| Number of Headphone outs | 1 |
| Headphone out connector type | 6.3 mm Jack TRS female |
Line output performance
| Max. output level (<1 % THD, 20 Hz - 20 kHz) | 18 dBu |
| Balanced output impedance (1 kHz) | 600 Ω |
Signal processing
| Min. Signal-to-noise ratio (SNR) | 112 dB |
| Max. THD+N (1 kHz, +4 dBu, unity, unweighted) | 0.015 % |
| Max. THD+N (30 Hz, +4 dBu, unity, unweighted) | 0.015 % |
| Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu) | 0.001 % |
Mains operation
| Operation voltage | 12 V DC - 18 V DC (external power supply) |
| Operation voltage | USB bus powered (5 V DC / 500 mA) |
| Rated power | 5 W |
Housing
| Cabinet material | Aluminium |
| Cabinet material | Steel |
| Coating | Powder coated |
| Colour | Black |
Environmental
| Ambient temperature | -10 - 70 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 140 mm |
| Height | 50 mm |
| Depth | 128 mm |
| Weight | 575 g |
