AAB-10 Active Antenna Booster, Battery-powered
51.50 CHF *
deliverable
Description
Technical data
Accessories
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

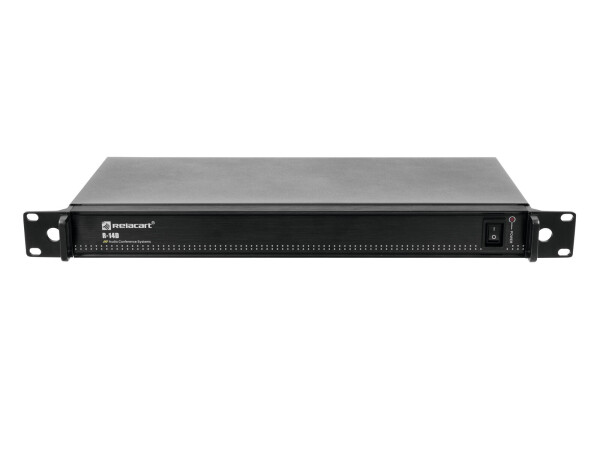

Productinformation in detailAntenna distributor (470 - 900 MHz)
- Active antenna distributor for operating up to four true diversity UHF receivers on one pair of multi-antennas
- Improves the interference safety and enlarges the range
- Replaces the respective antennas and PSUs of the individual receivers
- Up to five antenna distributors R-14D can be connected among each other for use of 16 microphones in total
- Low-voltage outputs for supplying four UHF receivers, incl. matching DC-connection cables
- Use in the entire UHF frequency range (470 - 900 MHz)
- All antenna connections via BNC jacks, incl. 10 x BNC cable
- UHF 470 - 900MHz License-free and approved in large parts of Europe
- (19") 48.3 cm rack installation
Package contents
- 1 x device, 1 x power cord, 10 x bNC cable, 4 x adapter cable, 1 x user manual, 1 x declaration of conformity
| Type: | Antennas and distributors |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 60 W |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Impedance: | 50 Ohm |
| Gain: | Output: 0 dB |
| Frequency band: | UHF 470 - 900MHz |
| Output voltage: | 4 x 12 V DC |
| Status LED: | Power |
| Connections: | Input: antenna via 2 x BNC (F) 8 V Output: antenna via 8 x BNC (F) |
| Switch: | On/off switch |
| Material: | Metal |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation |
| Dimensions: | Width: 48,3 cm Depth: 24,2 cm Height: 4,45 cm |
| Weight: | 3,00 kg |
Technical data
| Type: | Antennas and distributors |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 60 W |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Impedance: | 50 Ohm |
| Gain: | Output: 0 dB |
| Output voltage: | 4 x 12 V DC |
| Status LED: | Power |
| Connections: | Input: antenna via 2 x BNC (F) 8 V Output: antenna via 8 x BNC (F) |
| Frequency band: | UHF 470 - 900MHz |
| Switch: | On/off switch |
| Material: | Metal |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation |
| Dimensions: | Width: 48,3 cm Depth: 24,2 cm Height: 4,45 cm |
| Weight: | 3,00 kg |
