All variations to this product.Description

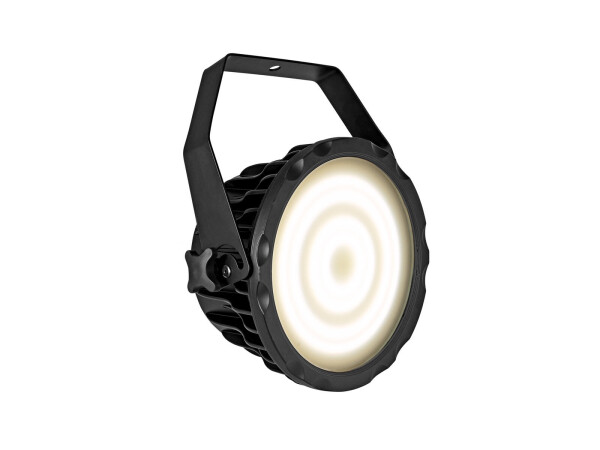

Productinformation in detailPRO slimline LED strobe with 840 x warm white (WW) LEDs, 16 separately controllable LED rings and switchable frost
- 840 powerful LEDs 0,5 W SMD 5730 warm white (WW)
16 segments controlled separately - Frost filter electronic
- Strobe effect
- 27 integrated show programs
- The device is cooled by passive convection cooling
- Control via stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With Mounting bracket
- LCD display
- Silent operation
- Mains input and output for power linking up to 8 units
- Preprogrammed in Light Captain
- For application areas such as: Clubs/dancing school; Stage; theater; Rental
- Application possibility: Suspended; on stand
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 150 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Fuse: | T 2 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 840 x 0,5 W SMD 5730 warm white (WW) |
| Color temperature: | 2700K |
| Flash rate: | 1 - 30 Hz |
| DMX channels: | 2; 3; 5; 7; 17; 23 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| Beam angle (1/2 peak): | 120° |
| Attachment system: | Mounting bracket |
| Display type: | LCD display |
| Dimensions: | Width: 30,5 cm Depth: 14,5 cm Height: 34,5 cm |
| Weight: | 5,50 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Technical data
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 150 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Fuse: | T 2 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 840 x 0,5 W SMD 5730 warm white (WW) |
| Color temperature: | 2700K |
| Flash rate: | 1 - 30 Hz |
| DMX channels: | 2; 3; 5; 7; 17; 23 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| Beam angle (1/2 peak): | 120° |
| Attachment system: | Mounting bracket |
| Display type: | LCD display |
| Dimensions: | Width: 30,5 cm Depth: 14,5 cm Height: 34,5 cm |
| Weight: | 5,50 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Video
Product video
