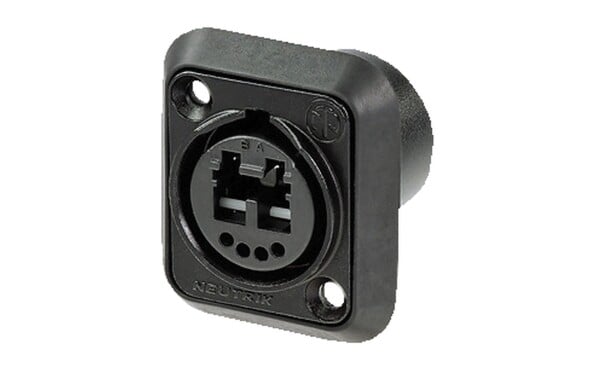

OpticalCON DUO Chassis

Numéro d'article: HLNO24FDWA Code barre – EAN: 8717748318572 catégorie: Connecteurs divers

Chassis connector with black chromium plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc. to IP65, front panel mount

The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection. Colored sealings are included to identify the fibre mode.

Improved contacts to allow indoor camera routing applications (pollution degree 1, overvoltage category 1) acc. to IEC 60664 up to 240 V ac.

disponible

Temps de livraison: 6 - 7 jours ouvrables

PVR: ~~110.00 CHF~~

100.00 CHF

inclus 8,1% USt. , plus

Payer en toute sécurité:

OpticalCON DUO Chassis IP65 LC-Duplex 4 (D-Size)

Suggested OEM equipment connector due to LC front compatibility
Designed as feedthrough with automatic sealing shutter
Shutter with silicone gasket protects optical connection from dust and dirt
Accommodates standard LC connectors on the rear for simple installation
Connection on the front side either by rugged opticalCON or standard LC connector
The low cost of the chassis connector makes it a viable alternative to traditional connectors in fixed installations
Water resistant according to IP65 ingress protection in mated condition
In case of limited space the chassis can be mounted without rubber gasket. IP rating for this is IP 52.
Colour coded rubber sealing to identify fibre mode:
Multimode - black
Single mode PC - blue
Single mode APC - green
