ODX-115ST Installation Subwoofer 100V white
RRP 680.00 CHF
551.00 CHF *
deliverable
Description
Technical data
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

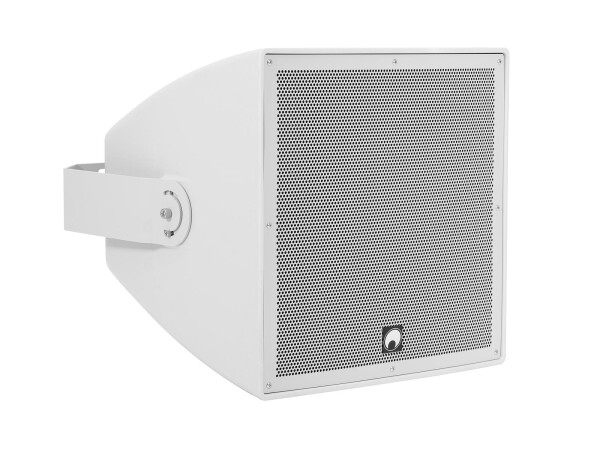

Productinformation in detailWeather-proof 15" wall speaker (IP56) with mount, 400 W RMS
- 2-way coaxial system with 38 cm woofer (15") and 3.6 cm tweeter (1.4")
- Durable plastic cabinet with metal grille
- Power selector switch with 8 ohms operating position
- Screw terminals for parallel connection
- With Mounting bracket
- Suitable for outdoor use IP56
- For application areas such as: Installation; sports centres/gyms; multi-purpose hall
Package contents
- 1 x top, 1 x mounting bracket, 1 x user manual, 6 x screw, 1 x safety eyelet, 1 x lid, 8 x washer, 1 x screwing
| IP classification: | IP56 |
| Power: | Program: 800W Rated: 400W RMS |
| Frequency range: | 50 - 18000 Hz |
| Sensitivity: | 103 dB (1W/1m) |
| Max. SPL: | 129 dB |
| Dispersion angle: | 60° x 25° |
| Impedance: | 8 ohms; Public address systems 100V |
| Attachment system: | Mounting bracket |
| Power tapping: | 75W; 150W; 300W; 400W RMS via Selector switch switchable |
| Connections: | Input: speaker via screw terminal |
| Crossover frequency: | 1500 Hz |
| Speaker: | 1 x woofer 15" Voice coil lows 3" 1 x compression tweeter highs 1,4" Voice coil compression tweeter highs 3" |
| Type of speaker: | On-ceiling/on-wall speaker |
| Color: | Grey |
| Dimensions: | Width: 49 cm Depth: 52 cm Height: 50 cm |
| Weight: | 31,35 kg |
Technical data
| IP classification: | IP56 |
| Rated power: | 400 W RMS |
| Program power: | 800 W |
| Frequency range: | 50 - 18000 Hz |
| Sensitivity: | 103 dB (1W/1m) |
| Max. SPL: | 129 dB |
| Dispersion angle: | 60° x 25° |
| Crossover frequency: | 1500 Hz |
| Impedance: | 8 ohms; Public address systems 100V |
| Attachment system: | Mounting bracket |
| Power tapping: | 75W; 150W; 300W; 400W RMS via Selector switch switchable |
| Connections: | Input: speaker via screw terminal |
| Speaker: | 1 x woofer (15") approx. 38 cm 1 x compression tweeter highs (1,4") approx. 3,6 cm |
| Type of speaker: | On-ceiling/on-wall speaker |
| Color: | Grey |
| Dimensions: | Width: 49 cm Depth: 52 cm Height: 50 cm |
| Weight: | 31,35 kg |
