All variations to this product.Description

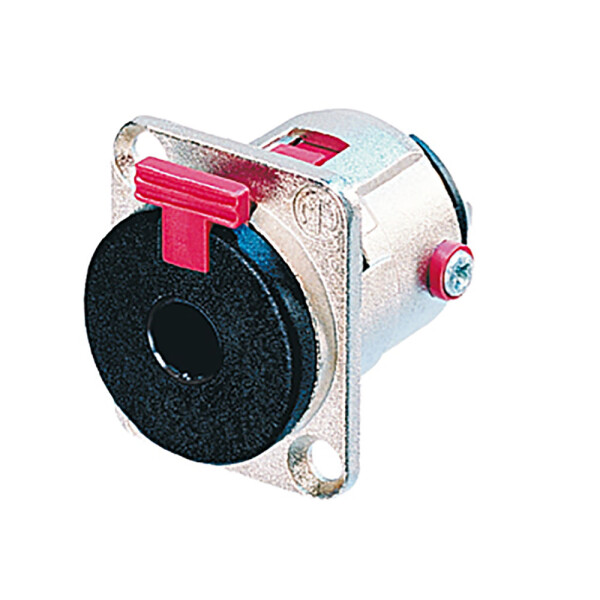

Productinformation in detailLocking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
Technical data
| Product type | Plugs and Connectors |
| Type | Jack Connectors |
| Poles | 3 |
| Gender | female |
| Contacts | silver plated |
| Rated current per contact | 10 A |
| Connection type | solder contacts |
| Temperature range | 70 - -25 °C |
| Housing | die-cast zinc |
| Chassis shape | D |
| Width | 26 mm |
| Height | 31 mm |
| Depth | 37 mm |
| Standards compliance | EIA RS 453 |
| Standards compliance | IEC 60603-11 |
| Weight | 0,026 kg |
| Additional information | in D-type housing |
