All variations to this product.Description

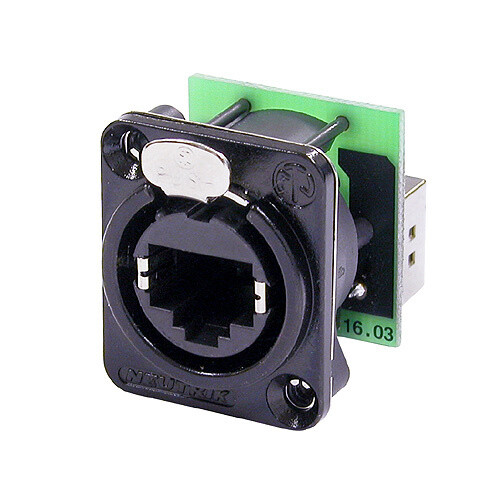

Productinformation in detailRJ45 feedthrough receptacle, black chrome D-shape flange.
The etherCON series is a ruggedized and lockable RJ45 connector system designed for proaudio, video, and lighting network applications. The chassis connectors are shaped to fit into standardized entertainment industry panels. The rugged D series is perfectly suited for panel mounting and the installer market.
- Accommodates NE8MC* or any standard RJ45 plug
- Proven latch lock system
- Mountable from the front or rear of the panel
- Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
Technical data
| Product type | Plugs and Connectors |
| Type | Other Plugs and Connectors |
| Poles | 8 |
| Gender | female |
| Contacts | Bronze |
| Connection type | RJ45 plug |
| Housing | die-cast zinc |
| Width | 26 mm |
| Height | 31 mm |
| Depth | 39 mm |
| Weight | 0,022 kg |
| Additional information | in D-type housing, mounting screws included |
