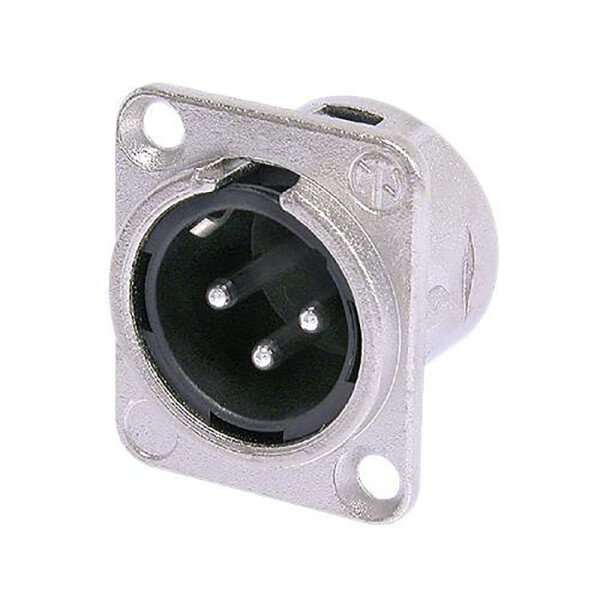

NC3MD-L-1 - XLR chassis connector 3-pole male ®

SKU: AHNC3MDL1SB GTIN: 7613187011283 Category: XLR installation 3-Pol

Robust "D" metal shell
Standardized D sized 24 mm panel cutout
Solder cups on 3 - 7 pole version
Durable D-shape metal shell
Standard D-panel cut-out (24 mm)
Soldered connections
Protection class: IP40
Gender: female

deliverable

Delivery time: 6 - 7 Workdays

RRP: ~~7.70 CHF~~

7.45 CHF

3%

incl. 8,1% VAT , plus

pcs.

Pay securely with:

NC3MD-L-1 - XLR chassis connector 3-pole male ®

3 pole male receptacle, solder contacts, Nickel housing, silver contacts

Universal D-size metal body XLR panel mount series. UL recognized component.

Product type	Plugs and Connectors
Type	XLR Connectors
Poles	3
Gender	male
Contacts	silver plated
Rated current per contact	16 A
Rated Voltage	< 50 V
Connection type	solder contacts
Temperature range	80 - -30 °C
Housing	die-cast zinc
Chassis shape	D
Width	26 mm
Height	31 mm
Depth	21 mm
Fire protection class	UL 94 HB
Protection class IP	IP40
Standards compliance	IEC 61076-2-103
Weight	0,021 kg
Additional information	in D-type housing
