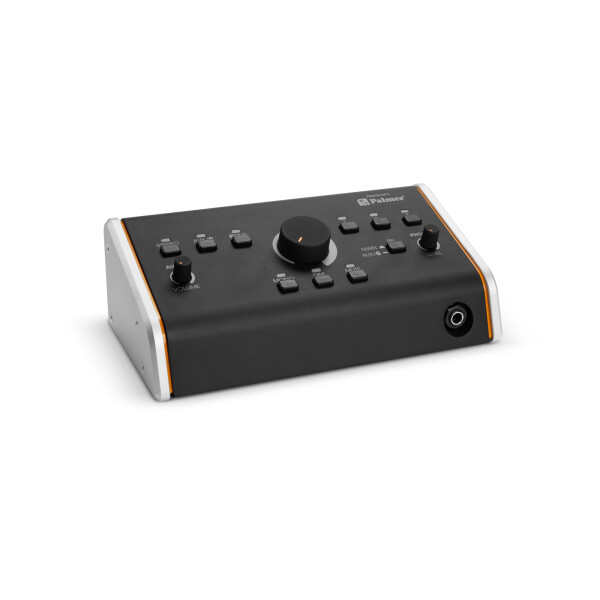

Productinformation in detailThe MONICON L is a versatile, compact studio monitor controller for professional project studios and ambitious home set-ups. It features three inputs for different signal sources: balanced via XLR/TRS combo sockets as well as AUX and Bluetooth for mobile or digital devices. The inputs and outputs can be switched on/off via dedicated buttons with LED status display.
Two stereo outputs and an additional mono output allow flexible control of the speakers, for example, for main monitors, nearfield systems, or subwoofers. The large analogue volume control allows precise control of the output level.
Functions such as “Mono,” “Dim,” and “Mute” support practical monitoring conditions and facilitate quick adjustments in everyday studio life.
With its own volume control and PFL function, a separate headphone output allows isolated pre-listening to input signals without affecting the main mix.
The integrated power supply provides power to the Bluetooth, the headphone amplifier, and output three. The signal path itself stays entirely analogue, which makes latency-free and pristine audio playback possible. MONICON L stands for reliable signal management, transparent sound control, and intuitive operation.
Technical data
General
| Type | Passive |
| Material | Steel sheet, Wood |
| Coating | Powder coated |
| Frequency response (±0.2 dB, rel. Avg) | 20 - 20,000 Hz |
| Colour | Silver |
Inputs
| Input signal type | Balanced & Unbalanced (parallel) |
| Number of balanced line inputs | 2 |
| Balanced Line-In connector type | XLR combo socket |
| Number of unbalanced line inputs | 2 |
| Unbalanced Line-In connector type | 3.5 mm Jack TRS female, 2 x RCA female (Stereo) |
Line input performance
| Nom. input clipping, balanced ( | 20 dBu |
| Nom. input clipping, unbalanced ( | 15 dBu |
| Input impedance (balanced) | 20 kΩ |
| Input impedance (unbalanced) | 10 kΩ |
| THD+N | ≤ 0.001 % (+4 dBu) |
| Frequency response (±0.5 dB, rel. Avg, unity) | 20 - 20,000 Hz |
| Min. CMRR (0 dB below clip, 1 kHz, unity) | 55 dB |
| Min. SNR (< 1% THD, 1 kHz, unity, A-weighted) | 112 dB |
Outputs
| Output signal type | Headphone, Balanced |
| Number of balanced line outputs | 5 |
| Balanced line outputs connector type | XLR 3-pole male |
| Number of Headphone outs | 2 |
| Headphone out connector type | 6.3 mm Jack TRS female |
| Min. headphone impedance | 10 Ω |
| Max. headphone out power | 100 mW |
Line output performance
| Max. output level (<1 % THD, 20 Hz - 20 kHz) | 20 dBu |
| Balanced output impedance (1 kHz) | 600 Ω |
| Dynamic range (AES17) | > 115 dB |
Mains operation
| Power supply type | External switched-mode power supply (SMPS) |
Environmental
| Ambient temperature | 0 - 40 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 218 mm |
| Height | 76 mm |
| Depth | 124 mm |
| Weight | 910 g |
| Crosstalk | -79 dB |
