Defender

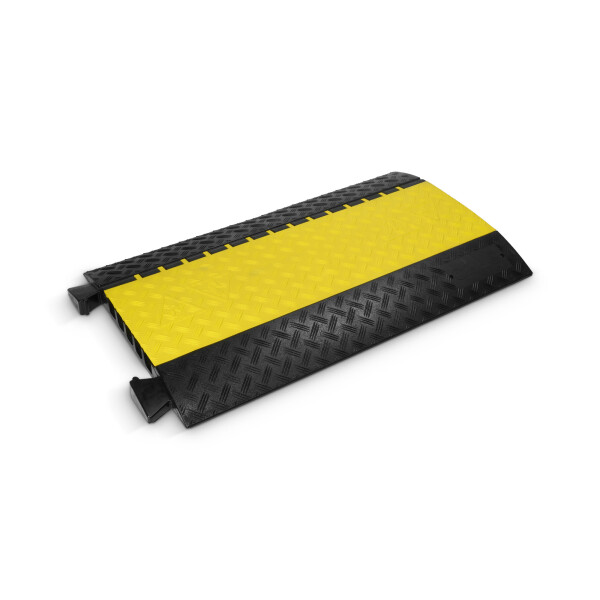

MIDI 5 - Cable Protector 5-Channel

SKU: AH85300 GTIN: 4049521015496 Category: DEFENDER Midi

Heavy-duty,non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
Yellow polyurethane lid with high warning effect and secure closure
Self-cleaning lid hinge
5 channels 34 x 36 mm
Load bearing capacity approx. 5 t / 25 x 30 cm
Fire resistance class B2 (DIN 4102)
Resistant to oil, acid, petrol and short-term contact with solvents
Dimensions 87 x 53.8 x 5.5 cm; Weight 13.5 kg
Reliable protection for cables and personnel for indoor and outdoor use
Also available with pre-drilled mounting holes with a blue lid (Item No. 85300BLUE)
Curves and end ramps for flexible cable protection are available as accessories
TÜV SÜD certified

deliverable

Delivery time: 6 - 7 Workdays

RRP: ~~212.00 CHF~~

174.00 CHF

17%

incl. 8,1% VAT ,

pcs.

Pay securely with:

MIDI C - 45° Curve for 85300 Cable Protector 5-channels

Defender

MIDI C - 45° Curve for 85300 Cable Protector 5-channels

RRP 194.00 CHF

160.00 CHF *

deliverable

Midi ER - End Ramp for 85300 Cable Protector 5-channel

Defender

Midi ER - End Ramp for 85300 Cable Protector 5-channel

RRP 80.00 CHF

77.90 CHF *

deliverable

5 Medium Channels - The Solution for Nearly Anything

The DEFENDER® MIDI cable protection system has been designed for maximum routing versatility and secure crossing. Featuring a low profile, 5 t per 25 x 30 cm load capacity, integrated connectors and handles the straight ramp, 45° curve and end ramps are easily linked to form a continuous cable guard while five 34 x 36 mm channels allow for individual sound, lighting and power line arrangement. DEFENDER® MIDI cable protectors are ideal for a multitude of usages such as heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls, broadcasting and music events.

Label your cable protectors! Customise the DEFENDER® cable protectors with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.

Product type	Cable Protectors
Type	5 Channels
Length	870 mm
Height	55 mm
Width	538 mm
Channels	5
Width channel 1	34 mm
Height channel 1	36 mm
Width channel 2	34 mm
Height channel 2	36 mm
Width channel 3	34 mm
Height channel 3	36 mm
Width channel 4	34 mm
Height channel 4	36 mm
Width channel 5	34 mm
Height channel 5	36 mm
Material	Polyurethane
Max load	Approx. 5 t on a surface area of 25 x 30 cm
Chemical resistance	Oil-resistant
Chemical resistance	Petrol-resistant
Chemical resistance	Short-term contact with solvents
Hardness range	88 Shore ± 4 A Shore
Fire protection class	B2
Temperature range	-30°C to 60°C °C
Weight	13,4 kg
